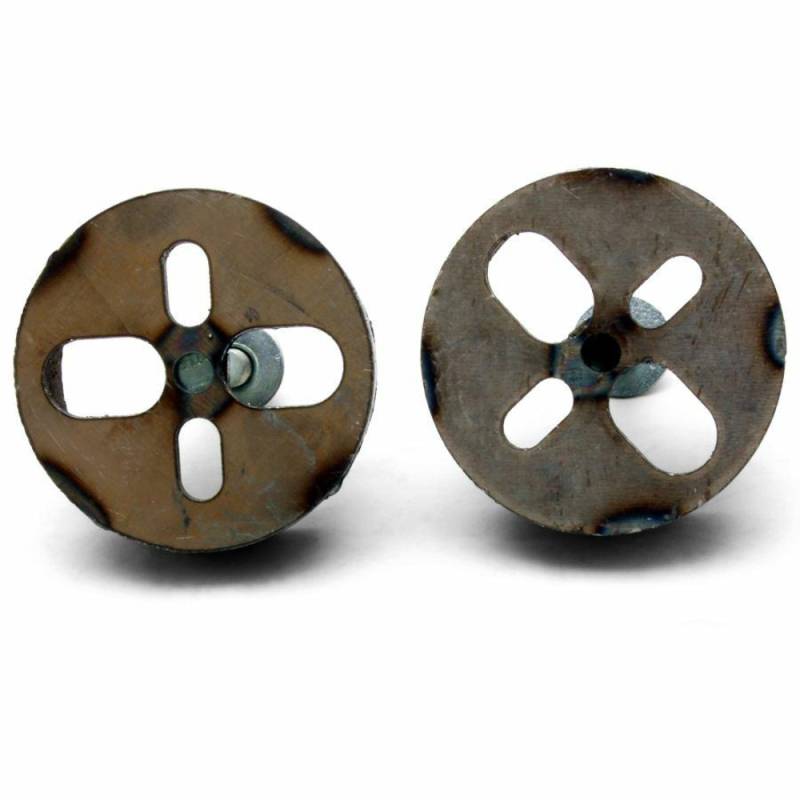

Helix HEXBRK048 Universal Bolt On Air Suspension Cup Bracket Pair

Adding air bags to your vehicle just got easy with universal bolt on air bag bracket. Helix's unique design makes these brackets ideal for direct replacements for factory shocks with upper studs. Simple remove shock, and install the air bag bracket by securing the upper threaded shaft. Once done the air bag will mount directly on to the bracket. Made form heavy duty 6mm steel that is guaranteed to hold up to the harshest conditions.

• Material :: Steel
• OD :: 4.72" (120mm)
• Cup Height :: 1.77" (45mm)
• Length Of Shaft :: 4.25" (108mm)
• Thread On Shaft :: 9 1/16 x 20
• Air Bags :: 2500 & 2600 Series
• Plate Thickness :: 6.3mm
• Location :: Upper Mounts
• Installation :: Bolt On or Weld On
• Location :: Front & Rear
