Helix HEXSHXABB31 Mustang II Front Air Suspension Bracket Kit

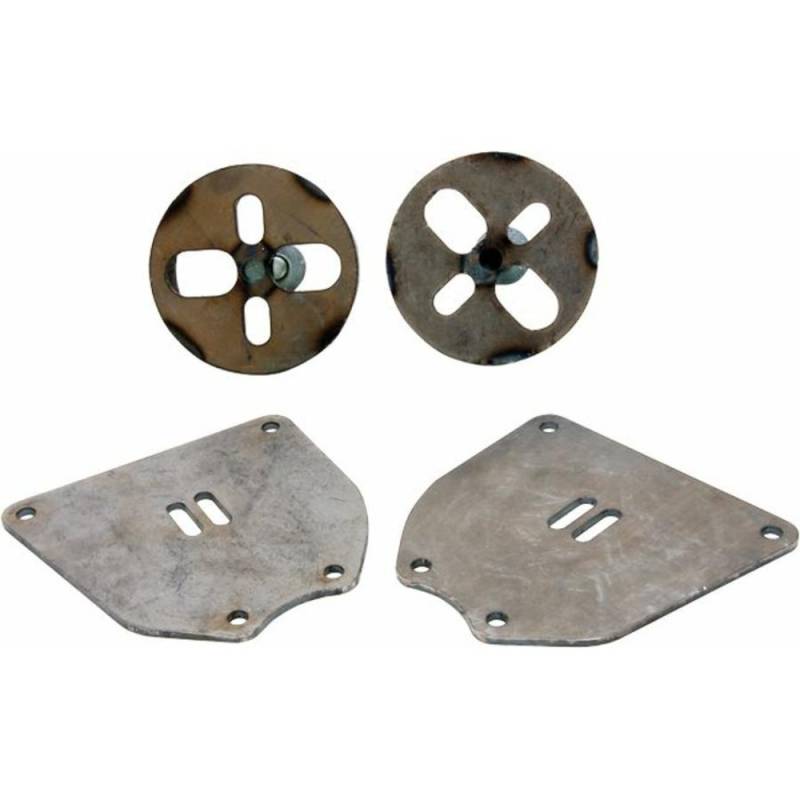

Adding a direct replacement air shock has never been easier than with this Helix Front air bag/air shock mounting bracket kit for Mustang II suspension. These uniquely designed brackets by Helix allow a simple changeover from conventional factory style gas shock to air bag type shock with no modification or fabrication. Upper cup bracket is precision welded with heavy grade 6 mm steel and has threaded center stud which secures bracket in place. Lower mounting plate is fabricated from heavy duty 3 mm steel and has an adjustable slotted design which will fit either tubular or stamped lower control arm. When mounting hardware is secured, simply install air bag in place of conventional shock. So get rid of the gas and breathe clean air by adding air shocks with ease to your classic ride using these one-of-a-kind air bag shock brackets by Helix today! Stay ahead of the pack with Helix Suspension.

• Application :: Mustang II
• Type :: Air Shock
• Upper Cup Bracket Plate :: Specs Below
• Material :: Steel
• OD :: 4.72" (120mm)
• Cup Height :: 1.77" (45mm)
• Length Of Shaft :: 4.25" (108mm)
• Thread On Shaft :: 9/16-20
• Air Bags :: 2500 & 2600 Series
• Plate Thickness :: 6.3mm
• Location :: Upper Mounts
• Installation :: Bolt-On or Weld-In
• Location :: Front & Rear
• Lower Bracket Plate :: Specs Below
• Material :: Steel
• Adjustment Travel :: 2.36" (60mm)
• Air Bags :: 2500 & 2600 Series
• Air bag Adjustment :: Yes
• Plate Thickness :: 3mm
• Location :: Front
