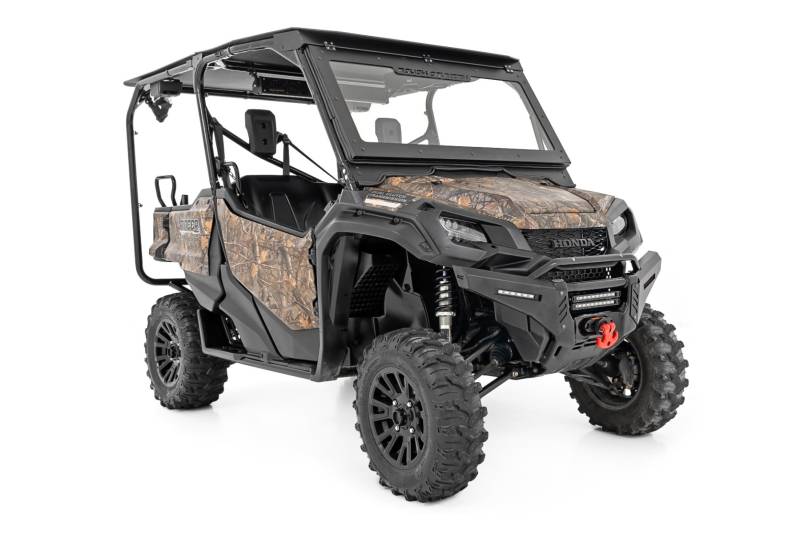

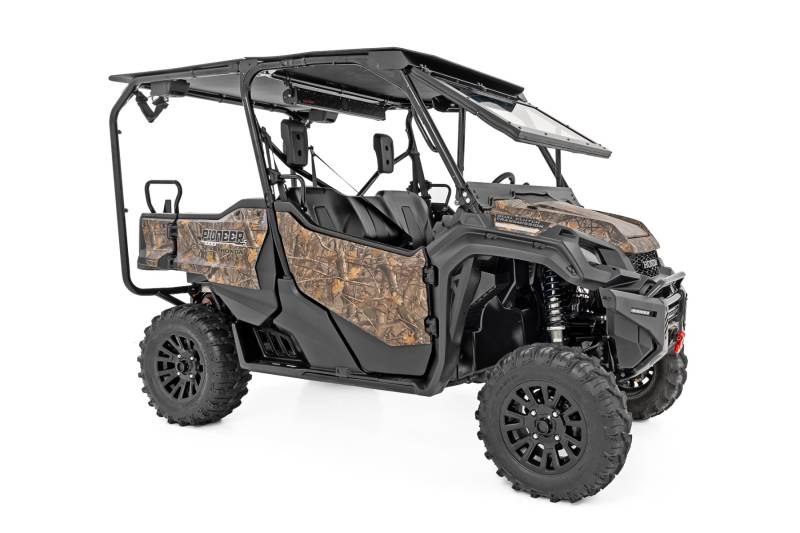

Rough Country 98316222 UTV Electric Tilt Windshield for Honda Pioneer 1000

Maximum Durability and Visibility: Say hello to a whole new view with Rough Country's Auto-Tilt Glass Windshield for the Honda Pioneer 1000/1000-5. With its DOT-approved glass and sturdy construction, this windshield is less likely to crack or break, even when driving through rough terrain. The Auto-Tilt Glass Windshield for Honda Pioneer is the perfect accessory for your off-road vehicle, giving you unobstructed visibility. Our windshield is built to make your ride safer, so you can focus on the trail ahead.Heavy-Duty Reliability: The Auto-Tilt Windshield is installed in a heavy-duty metal frame with UV and scratch-resistant powder coating that can withstand all weather conditions. And with weather seal protection, the glass will stay in excellent condition for years to come. It features an easy-to-use rocker switch, so you can open the windshield slightly for minimum airflow or fully open it for maximum airflow. The push-button control with dual linear actuators is so easy to use that you can even adjust mid-ride. The glass is built for long-lasting reliability because the rugged design of your Pioneer deserves a windshield that is just as tough.Installation: Our new Auto-Tilt Glass Windshield can be installed on Honda Pioneer models for a clear view and added protection. The windshield comes with the hardware needed for an easy install that includes some minor drilling.Warranty: Rough Country's Auto-tilt Glass Windshield is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty, give yourself peace of mind when using Rough Country's products!

Features:

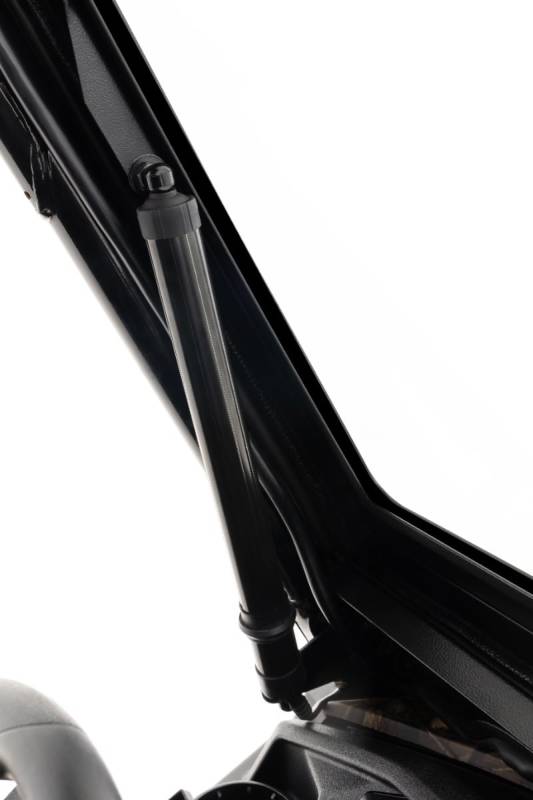

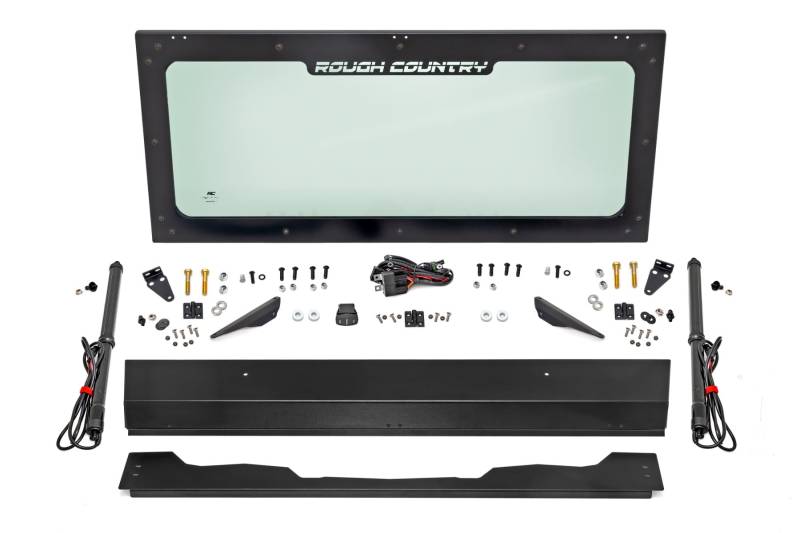

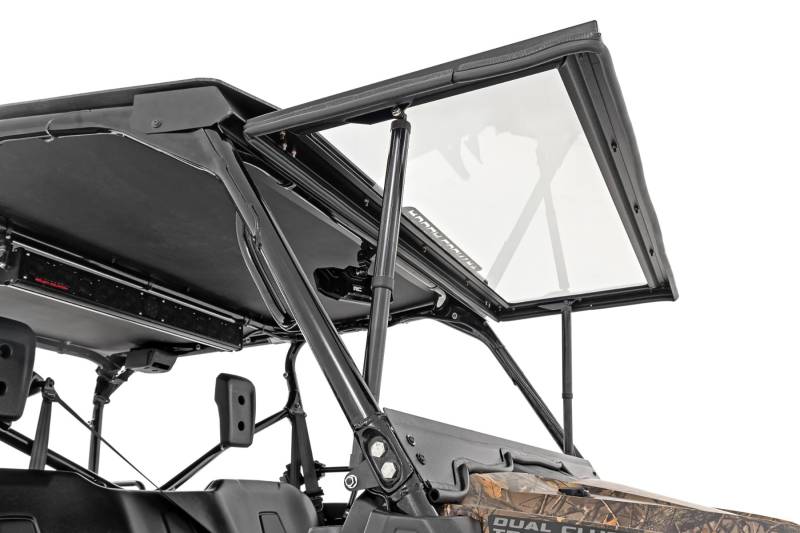

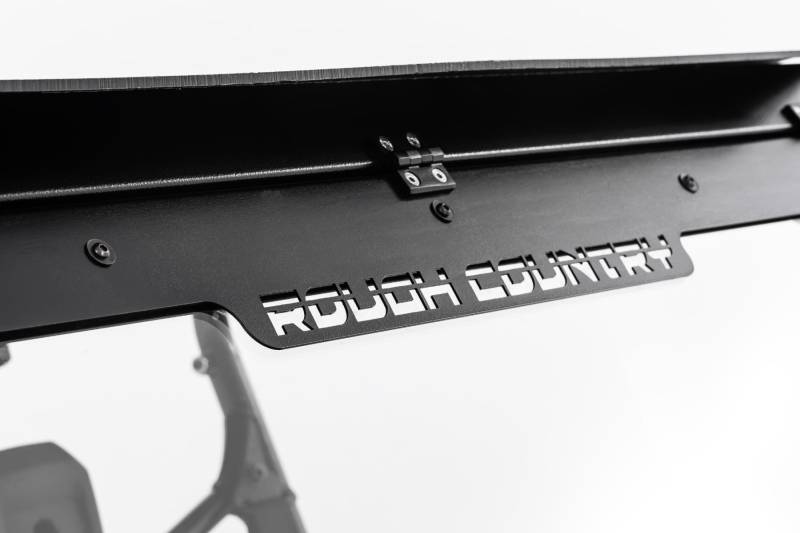

• Precision Fitment: Overall frame dimensions measure 50.75 inches wide and 29.5 inches tall for a clean, factory style install on Honda Pioneer models.\ Full Glass Viewing Area: Glass panel measures 44.66 inches wide and 21.75 inches tall for excellent forward visibility.\ Heavy Duty Metal Frame: Built from durable steel and finished with a UV and scratch resistant powder coat for long lasting protection.\ DOT Approved Safety Glass: Scratch and impact resistant glass provides confidence on the trail and around the property.\ Electric Tilt Function: Electrically actuated windshield allows precise position control for light airflow or fully open ventilation.\ Push Button Operation: Open and close the windshield effortlessly with the touch of a button.\ Weather Sealing Edge Trim: Integrated edge seal presses against the vehicle frame to block out most dust, wind, and water.\ Simple Installation: Designed for an easy install with minimal tools required.\ \ \ Cylinder Specifications:\ \ Operating Voltage: 12V system compatible with Honda Pioneer electrical systems.\ \ Stroke Range: Adjustable stroke length from approximately 382 mm to 586 mm.\ \ Lifting Force: Rated at 410N with maximum support capacity up to 45 kg.\ \ Operating Speed: Moves at 10 mm per second under no load.\ \ Weather Resistance: IP65 rated for reliable performance in wet and dusty environments.\ \ Operating Temperature Range: Designed to operate in temperatures from 23 to 122 degrees Fahrenheit.\ \ Current Draw: 5 amps at full load.\ \ .

Notes:

• Fits with most factory roofs but in some cases requires the roof to be trimmed ┬╝ to 3/8ΓÇ¥ along the front edge to clear windshield movement.
• Does NOT fit factory roofs with plastic leaver snap clamps.For ease of installation a nutsert tool is recommended 10583.For tips on how to install a nutsert please watch this video here!.

Installation Time Estimated: 1-2 hours

Fitments:

• 2016-2025:4WD:Honda:SXS1000M3 Pioneer 1000.
• 2016-2025:4WD:Honda:SXS1000M5 Pioneer 1000-5.
• 2016-2025:4WD:Honda:SXS1000M5 Pioneer 1000-5 Deluxe.
• 2017-2019:4WD:Honda:SXS1000M3 Pioneer 1000 Limited Edition.
• 2017-2021:4WD:Honda:SXS1000M5 Pioneer 1000-5 Limited Edition.
• 2020-2025:4WD:Honda:SXS1000M3 Pioneer 1000 Deluxe.
• 2023-2025:4WD:Honda:SXS10M6 Pioneer 1000-6 Deluxe Crew.
