BDS Suspension BDS1809H 6" NX2 Lift Kit for 19-24 GM 1500 w/Active Ride Control

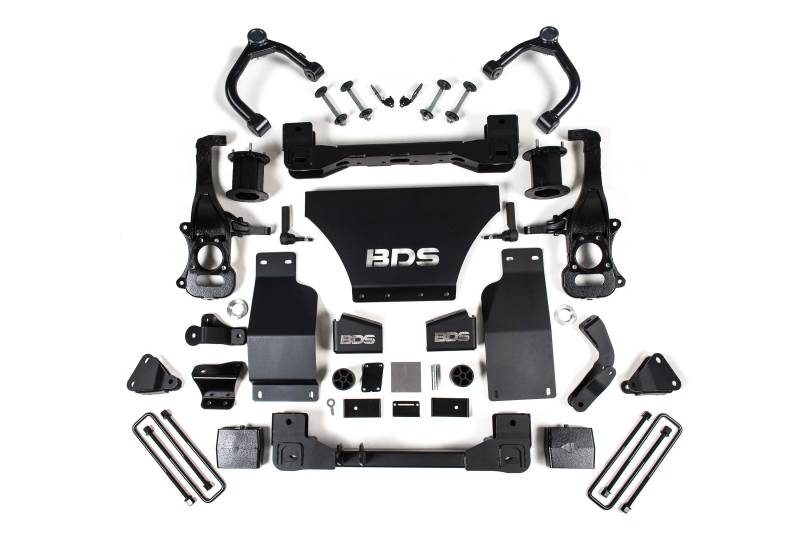

Improve the look and ride of your Chevy Silverado High Country and GMC Denali 1500 trucks with a 6-inch suspension lift kit by BDS Suspension. Works only with trucks equipped with Adaptive Ride Control. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your vehicle up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried-and-true high-clearance design for improved ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for great on-road handling. Up front, the kit uses top-mounted strut spacers, high-arched 1/4-inch-thick steel crossmembers, a multipiece differential relocation bracket, and heavy-duty skid plates for off-road protection. Steering geometry is corrected at the new, taller ride height with CNC-machined ductile-iron steering knuckles and replacement tie rod ends, allowing for ESC system compatibility. These, combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware, and more, provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear, BDS offers a heavy-duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also, for the rear, new u-bolts and shock relocation brackets are installed to maintain the ARC system without error.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy-duty 1/4-inch-thick, laser-cut, perfect-fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new, taller ride height using a pair of high-strength, CNC-machined, ductile cast-iron steering knuckles designed to work with replacement tie rod ends to mainta
