BDS Suspension BDS409H 3.5" NX2 Lift w/3.5" Springs for 87-95 YJ Soft Top

Designed to improve stance, performance, and capability. BDS Suspension has designed this 3.5-inch lift kit for your 1987-1995 Jeep Wrangler YJ. This kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

This 3.5-inch lift kit includes front and rear Glide-Ride leaf springs with new u-bolts, front and rear track bar relocation brackets to center the axle, brake line brackets, power steering pitman arm, bump stop extensions, and a transfer case drop kit to ease the drive line angles.

Round out this kit with specially tuned NX2 nitro series gas shocks to offer improved damper performance.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design.

These spring feature tapered leafs, anti-friction pads, bolt style leaf alignment clamps and a full military wrap to protect your spring eyes from the rocks. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

• Front Lift Method: Leaf Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 3.5 inch
• Rear Lift Height: 3.5 inch

1. May require driveshaft lengthening for 13 inch (u-joint to u-joint) driveshaft.
2. May require larger diameter driveshaft if equipped with a 41-1/2 inch front driveshaft.
3. Extended shackles recommended to clear military wrap.
4. Models with accessories like hardtop, rear Tire carrier, roof rack etc., should use #004351 springs on front and rear.
5. When combining lifted shackles with a 3.5 inch suspension system, a tail shaft eliminator kit and a inchCV inch style rear driveshaft may be required to eliminate driveline vibration.
6. Pitman arms will NOT fit Yj models equiped with manual steering.

• Glideride leaf springs to provide full lift height and increased capacity
• Front and rear track bar relocation brackets to center the axle
• Transfer case drop kit to ease the drive line angles
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Easy, 100 percent Bolt-on installation

Rear Lift Option

Select the appropriate rear springs based on the weight of your vehicle and hard top vs. soft top.

• Light Duty Leaf Springs - Use these light-duty springs if you have a soft top and plan to either run with the stock spare or no spare at all.

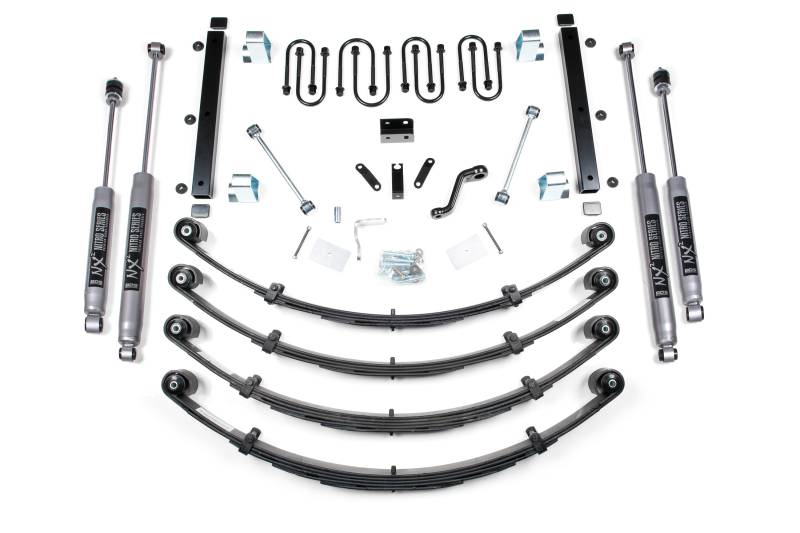

Kit Components:

• Includes two BDS004351, 87-95 Jeep YJ 3.5in Front Spring, UPC Code 658848611515
• Includes two BDS004359, 87-95 Jeep YJ 3.5in Rear Spring, UPC Code 658848611522
• Includes one BDS014351, 87-95 Jeep YJ 3.5 inch Box Kit, UPC Code 658848614080
• Includes one BDS084404, Jeep YJ/TJ Pitman Arm - PS, UPC Code 658848618354
• Includes one BDS124001, Jeep YJ Frt Anti-sway Bar Lnk Kt w/bush, UPC Code 711745604506
• Includes two BDS85950, Shock- 22.95 x 14.65 x 2 - EB1/EB1, UPC Code 711745610033
• Includes two BDS85955, Shock- 28.15 x 16.45 x 2 - S1/EB1, UPC Code 711745610088
