Speedtech 10312 Torque Arm Rear Suspension Package 67-69 Camaro 12 Bolt

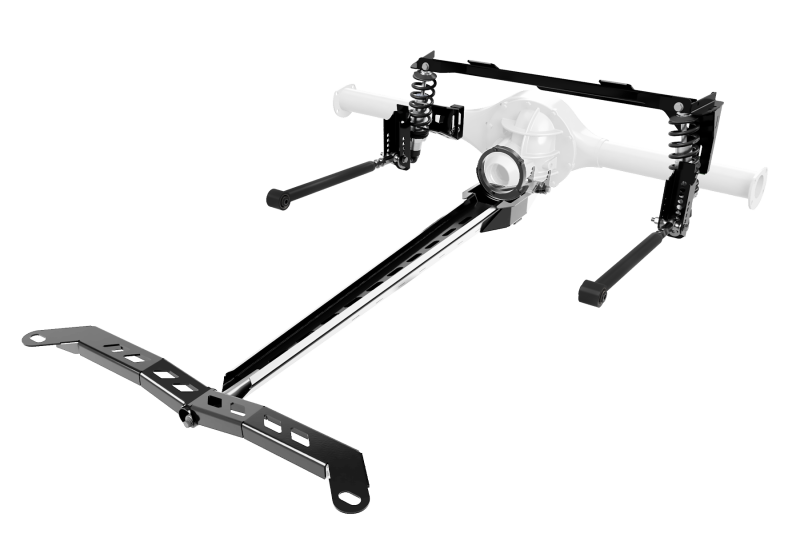

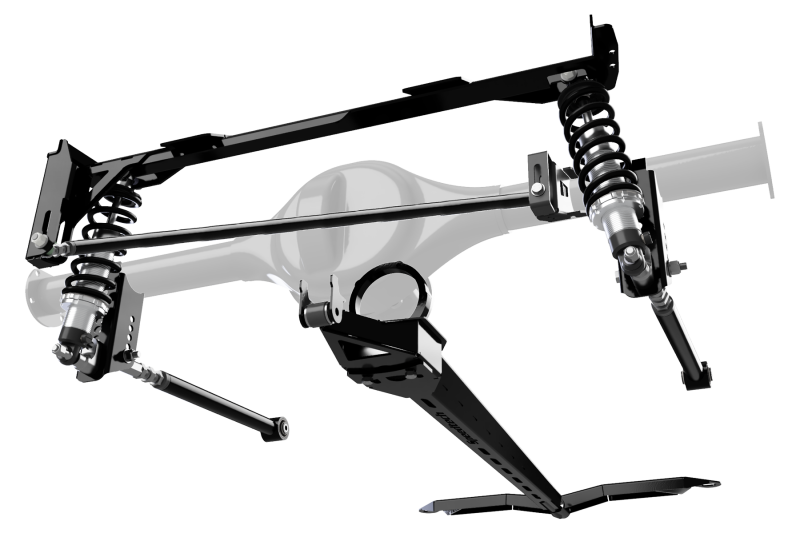

Speedtech 10312 Torque Arm Rear Suspension Package, 67-69 Camaro, 12 Bolt The Speedtech Performance ExtReme Torque Arm rear suspension kits for ’67-’69 Camaros and Firebirds convert the OE leaf spring rear suspension to coilovers, trailing arms and a torque arm so you can maximize your street and track day performance.

Our Torque arm kits drastically improve performance handling and everyday drive quality compared to the original leaf springs without the bind and other problems that come with other link style suspension kits. Unique in its design, this package will virtually eliminate the inherent change in geometry and possible traction issues commonly associated with leaf springs and 4 links.

TORQUE ARM REAR SUSPENSION KIT INCLUIDES:
• Adjustable trailing arms with Zeder bushings
• Cross member with Torque Arm receiver
• Cross member with coilover mounts and panhard bar mount
• Adjustable roll center via panhard bar
• Adjustable ride height axle brackets
• Pinion mount with adjustable angle
• Torque arm
• QA1 Double Adjustable Coilovers with 300lb/in springs
• Brackets to weld onto your rear end housing
• Powder coated satin black and ready to install
FITMENT NOTES:
• Installation requires welding to rear frame rails and rear axle housing
• No cutting of floorboards required
• Will accept up to a 345mm tires on a 20×12” rim in mini-tubbed applications
• Coilover shocks allow 2 1/2? of ride height adjustment
• Kit is compatible with GM 12 Bolt housings (housing not included)
