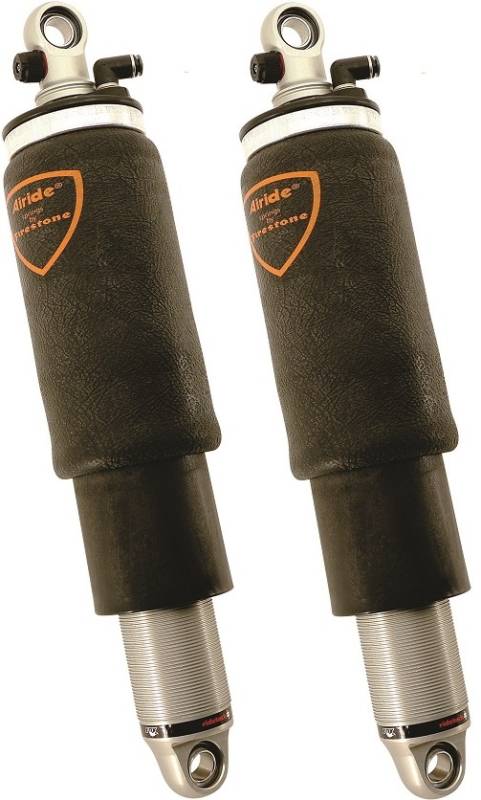

Ridetech 21150701 Rear Shockwave HQ 7000 16.4"/11.85" Bearing/Bearing Pair

Rear HQ Shockwaves 7000 Series W/ 5.2 Inch Stroke And 1.7 Inch Eye A Pair Of Rebound Adjustable Shockwaves 4 Inch Rolling Sleeve W/ 1/4 Inch Fittings And Bearing Spacers 1/2 Inch And 5/8 Inch 11.85 Inch X 16.4 Inch W/ A 14 -14.5 Inch Ride Height.

The 7000 and 8000 series ShockWave, W/ a smaller diameter and longer stroke, will have a less load capacity and a softer spring rate that is appropriate for the rear of most vehicles W/ a solid rear axle.

The spring rate and load capacity is influenced by the profile of the lower piston. A straight piston will offer a very linear, or constant spring rate, throughout its travel.

A tapered lower piston will result in a more progressive spring rate, much like the double convoluted airspring.

Although your specific vehicle may not be listed, we have a variety of ShockWaves that are designed to work W/ just about whatever setup you're using. Whether you're replacing your current CoilOvers, or starting a fresh build we can suit your air suspension needs.

Recommended Applications:

• Solid rear axle: Rear axle weight is less than 1,500lbs.
• Not recommended for IFS installations … not enough load capacity

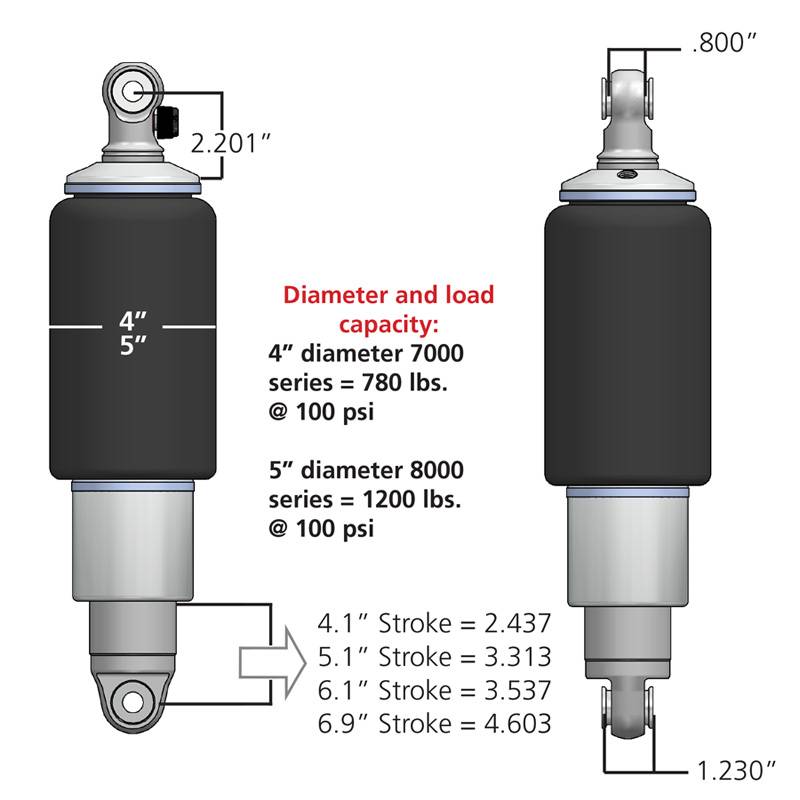

Diameter and load capacity: 4 inch diameter 7000 series = 780 lbs. at 100 psi

Handling Quality Series

The Handling Quality (HQ) Series features single adjustable shock valving. It is housed in a impact forged aluminum construction. The HQ series is available in a wide range of stroke lengths, and mounting styles to fit a large variety of applications.

Features:

• Completely redesigned internal design
• Aluminum construction
• Single adjustable shock valving
• Available in a wide range of stroke lengths, and mounting styles to fit large variety of applications
• Impact forged body / mono-tube design for superior ride quality and durability
• Easy & precise valve adjustment W/ 24 rebound clicks
