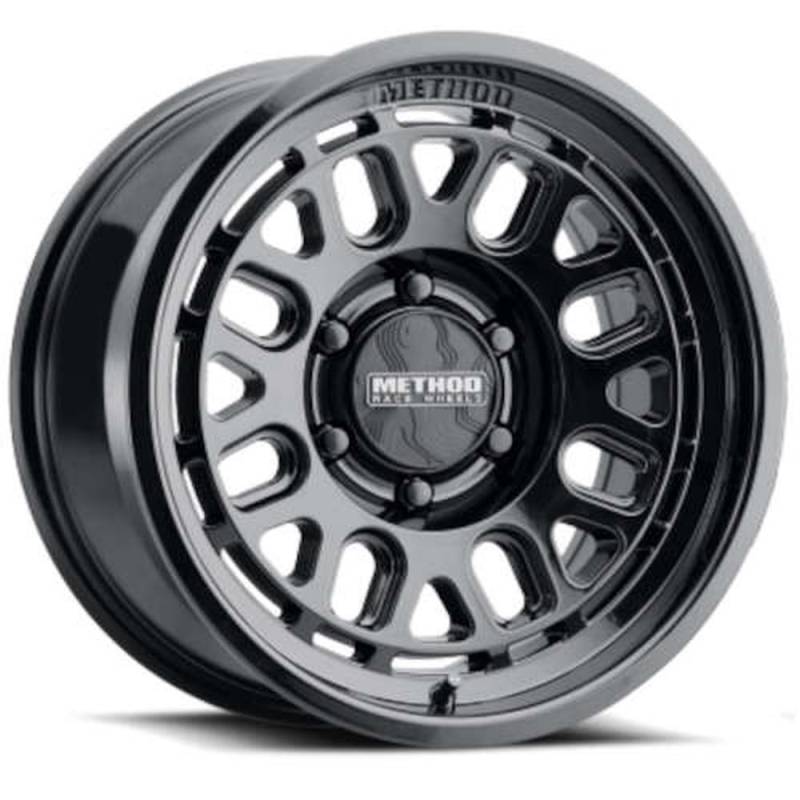

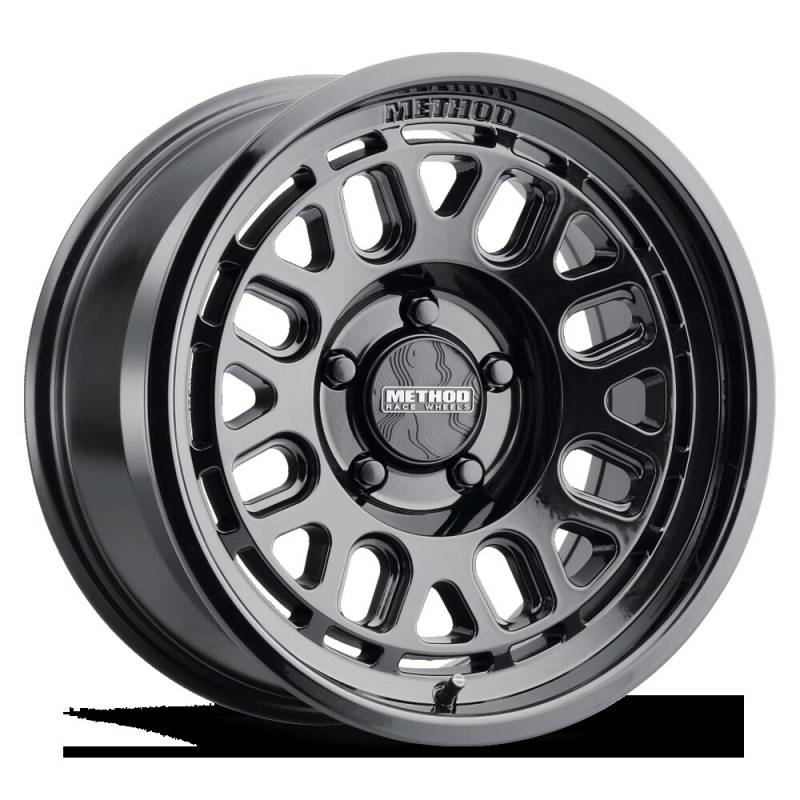

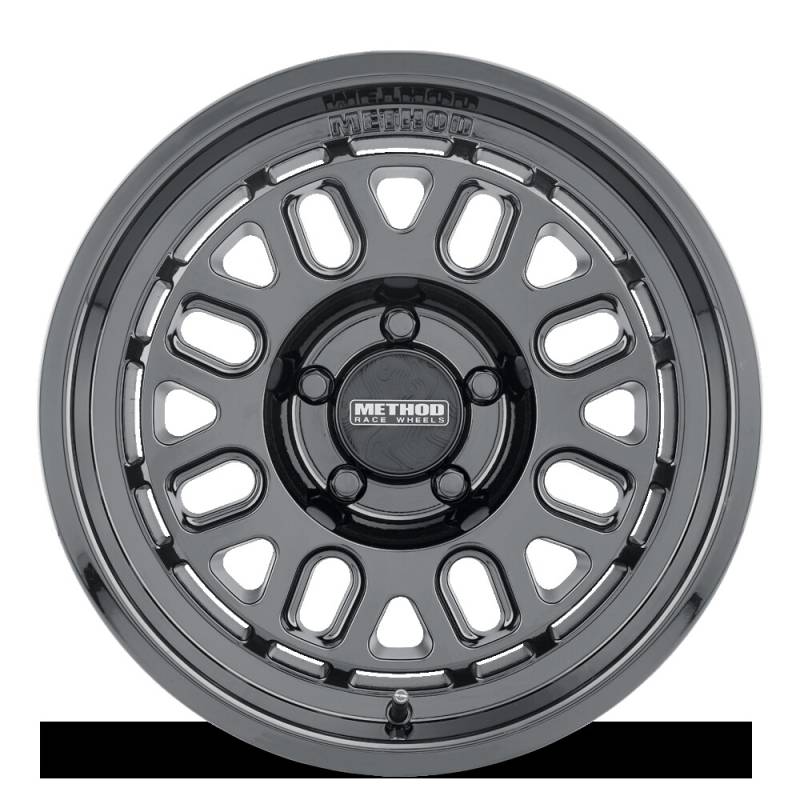

Method Race Wheels MR321 17x8.5 5x5.0 0mm Gloss Black MR321785501300

Designed to stand out from the crowd, introducing Method Race Wheel's 321 Standard. Engineered with a unique window and spoke design, this wheel is a statement of bold style and functionality.

Available in Gloss Black and Machined finishes, and includes the popular Method Topo center cap. It's a great choice for off-road enthusiasts who seek the perfect balance of unique aesthetics and high performance.

Features and Benefits:

• Solid A356 aluminum with T6 heat treatment construction
• Clean 8 windowed spoke design with debossed Method logo
• Snap-in Topo center cap with embossed Method logo
• Push through Topo center cap with embossed Method logo for 8 lug applications
• Hub centric fitments for common applications
• Industry’s best lifetime structural warranty
• Strong 2650 lbs. to 3640 lbs. load rating

Details:

• Series: STREET (3XX)
• Model: MR321
• Wheel Diameter Inch: 17 Inch
• Wheel Width Inch: 8.5 Inch
• Bolt Pattern: 5x5
• Bolt Hole: 5
• Bolt Diameter: 5
• Offset mm: 0 mm
• Backside Spacing Inch: 4.72 Inch
• Hub Bore mm: 71.5 mm
• Wheel Weight LBS: 28.17 LBS
• Max Load LBS: 2650 LBS
• Color/Finish: Gloss Black
• Application: 17x8.5, 5x5, 0 OS, 2650 lbs
• Cap Part: CP-TOPO86S-B
• Cap Type: Snap In
• Hub Centric Yes/No: No
• Lug Hole Diameter mm: 16.2 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 175 mm
• Spoke Depth At 90mm: 6.2
• Spoke Depth At 100mm: 30.94
• Spoke Depth At 120mm: 47.16
• Spoke Depth At 160mm: 57.93
• Inner Wheel Radius At 50mm: 209.8
• Inner Wheel Radius: 206
• Cap Bore mm: 71.5 mm
• Cap Clearance Height mm First Obstruction: 41.6
• Cap Clearance Height mm End Of Cap: 41.6
• Lip Size mm: 35 mm
• Lip Size Inch: 1.38 Inch
• CBM: 0.0766168399999998
