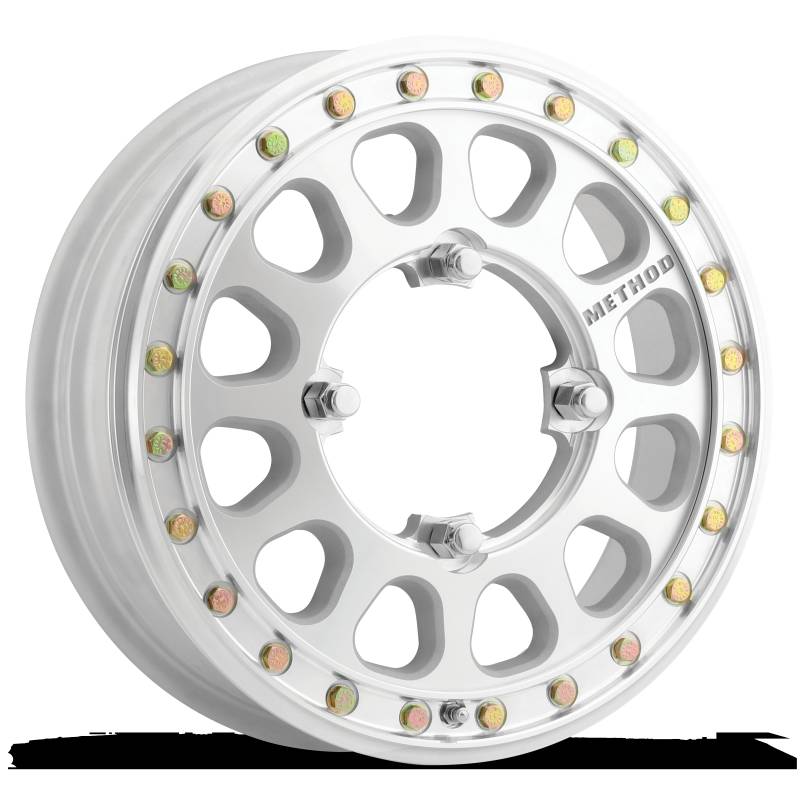

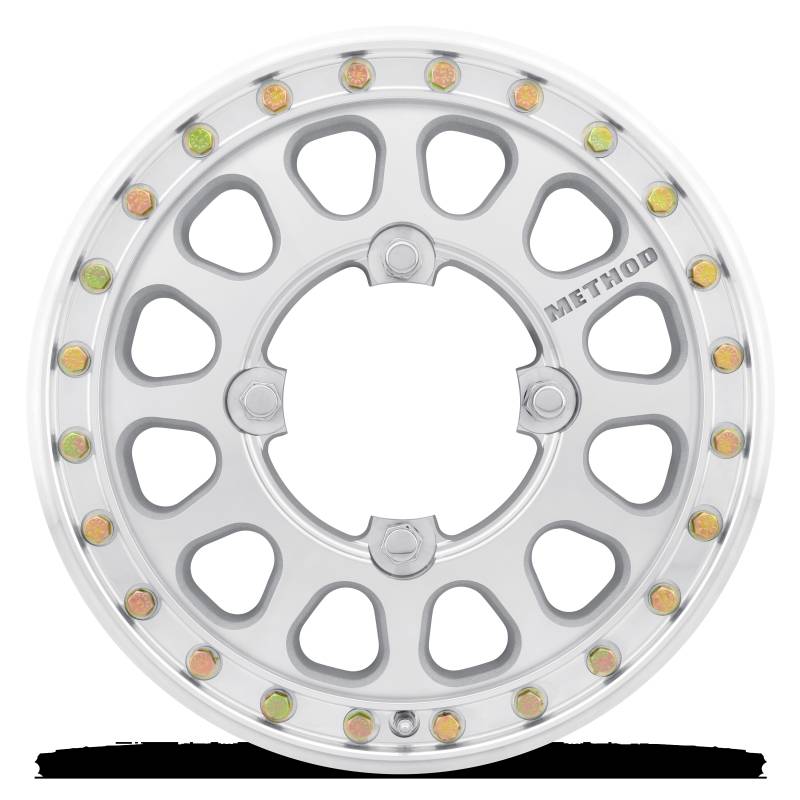

Method Race Wheels MR401 Beadlock 15x5 4x156 43mm Machined MR40155046346B2

The 401-R Beadlock UTV wheel was developed for the extremes of off-road racing and is available in both low offset and high offset versions.

The width and offset for the 401-R provide optimal handling and feedback for drivers, making it one of the top choices among UTV racers.

Features and Benefits:

• Solid A356 aluminum with T6 heat treatment construction
• Iconic 12 window design with debossed Method logos
• Reinforced inner lip provides extreme strength and durability
• Forged 6061 aluminum V.2 beadlock ring for greater strength and less deflection
• Grade 8 zinc-plated beadlock hardware kit included

Details:

• Series: UTV (4XX)
• Model: MR401-R UTV Beadlock
• Wheel Diameter Inch: 15 Inch
• Wheel Width Inch: 5 Inch

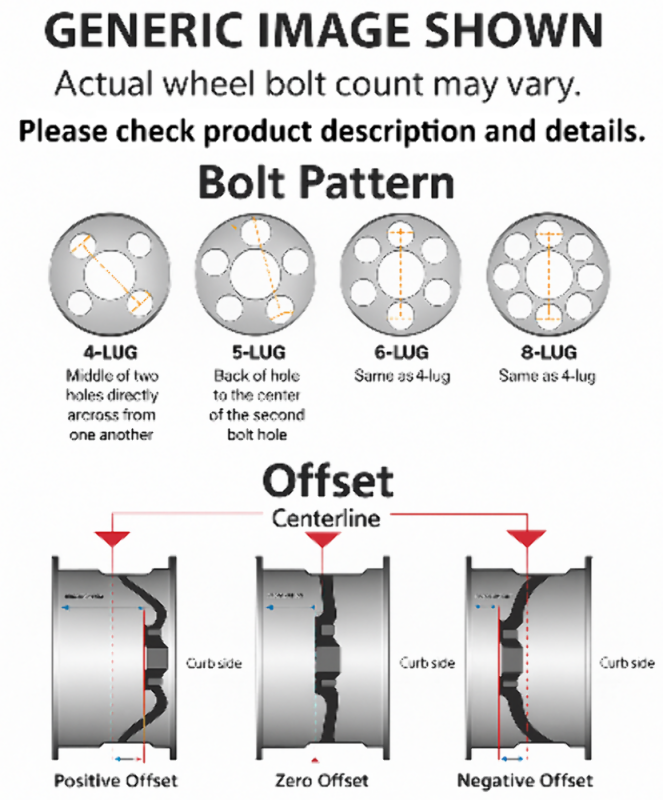

• Bolt Pattern: 4x156
• Bolt Hole: 4
• Bolt Diameter: 156
• Offset mm: 43 mm
• Backside Spacing Inch: 4.5 Inch
• ATV Offset B+F: 5+0
• Hub Bore mm: 127 mm
• Wheel Weight LBS: 17.52 LBS
• Max Load LBS: 1600 LBS
• Color/Finish: Machined - Raw
• Application: 15x5, 4x156, 43 OS, 1600 lbs
• Cap Type: None
• Hub Centric Yes/No: No
• Lug Hole Diameter mm: 14.1 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 190 mm
• Spoke Depth At 90mm: 0
• Spoke Depth At 100mm: 0
• Spoke Depth At 120mm: 5.7
• Spoke Depth At 160mm: 4.9
• Inner Wheel Radius At 50mm: 173.9
• Inner Wheel Radius: 170
• Lip Size mm: 0 mm
• Lip Size Inch: 0 Inch
• CBM: 0.04328436
