Helix HEXTTK4 Heavy Duty Triangulated Full Size Universal Four Link Kit

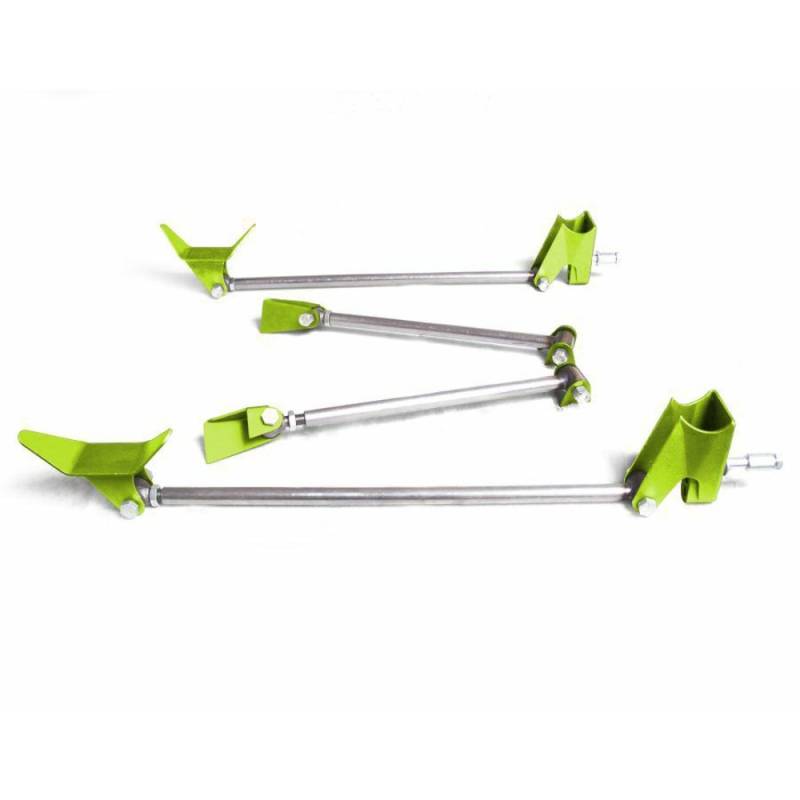

Helix Triangulated Full Size Universal Four Link Kit. Putting a lot of horsepower through your rear end Helix's New Heavy Duty Universal Triangulated 4-Link Kit is stronger than the rest! With the same .156 wall tubing that is the standard in drag racing applications, Helix's full-sized 4-link kit will remain straight and perfectly aligned under even the most demanding applications. Helixes adjustable 4-link features extra long 28 inch main bars and 18 inch secondary bars to provide you with the maximum in suspension travel and adjustability. Brass sleeved bushings guarantee a lifetime of squak-free operation. Completely TIG welded for maximum strength. All mounts are cut from 1/4" plate. Special infinitely adjustable CNC machined threaded rod ends are thicker than usual and thread over 2.5 inches into the 4-link tubes for both strength and adjustability. Fully plated Grade 8 mounting hardware included. Stay ahead of the pack with Helix Suspension.

• Heavy Duty Triangulated Full Size Universal
• Main Bar :: 28" (711mm) Long
• Secondary Bar :: 18" (457mm) Long
• Bar Wall Thickness :: 4.1mm
• Heavy Duty Bushings :: YES
• Coil Over Brackets Positions :: 3
• Coil Over Brackets :: YES
• Adjustable :: YES
• Bar Thickness :: 25 mm
• Brackets Thickness:: 5mm
• Brackets :: Included
• Install Hardware :: YES
• Number Of Bars :: 4
• Bushing Included :: YES
• Shock Hardware :: YES
• Hardware :: YES
• Axle :: 3" & 2 3/4"
• Free Tech Support
• Limited Lifetime Warranty
