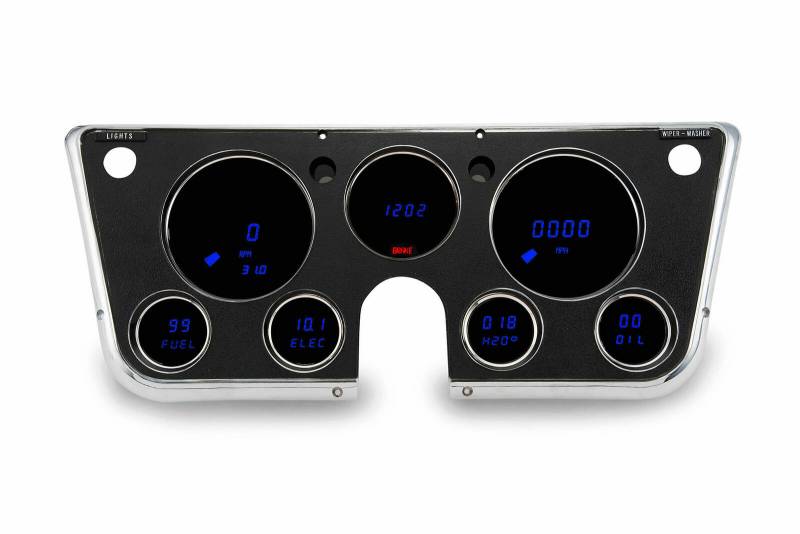

Intellitronix LED Digital Replacement Gauge Panel 67-72 Chevy DP6003B

*Bezel is not included*

The Intellitronix '67-'72 Chevy LED Direct Replacement Digital Dash is an easy to install digital dash display made specifically to fit Chevy trucks years 1967 to 1972. This LED digital dash can be purchased with a red, white, blue, or green LED display. Our long-lasting, super bright LED's allows for an easily readable dash display complete with a smoked plexiglass faceplate. Display is completely blacked out when the ignition is off, no Logos, Legends, etc.

Each Intellitronix Direct Replacement Digital Dash comes with a lifetime guarantee and everything you need for installation, including a step-by-step manual and free tech support.

This Digital Dash kit comes complete with direct fit printed circuit boards, custom fit "smoked" Plexiglas face plates, water temperature sending unit, oil pressure sending unit, and speedometer sending unit (sender/sensor) for trucks without electronic transmission or cruise control, and instructions for installation. The Digital Dash works with your factory fuel level sending unit and cruise control sender or electronic transmission output if so equipped. Everything directly fits into your existing housing, but you will need to run some new wires to the speed sensor or to the output of your electronic transmission.
The Speedometer reads up to 255 MPH (KPH is also available) and features odometer, trip meter, one-button calibration (regardless of tire size, gear ratio, or transmission) and 0-60 time, 1?4 mile ET, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 (universal speedometer sending unit) if your vehicle is not equipped with a functional cruise control.

Other gauges include the Tachometer (0-9,900 RPM in 100 RPM increments), the Water Temperature display with 100-300?F range (Celsius is available upon request--please just send a note to seller when you order) (Sender S8013 included; the Oil Pressure display with 0-100 PSI range (Oil pressure sender included), Voltmeter display with 7.0-25.5 volt range (no sending unit required), and Fuel Level display with 0-99% range in 1% increments (works with existing GM fuel level sending unit). The panels also feature turn signals and high beam indicator.

If you have an LS engine, then please be aware that you may need adapters (metric to nonmetric) for our sending units. You may have to obtain them elsewhere separately, though they may have been included with your engine kit, so you may already have them. Also, your LS engine has a Tach output equivalent to a 4 cylinder instead of 8, please send a note to us letting us know, so that we can set the tachometer accordingly. The tachometer is programmable, you can set it yourself if it comes set differently.
