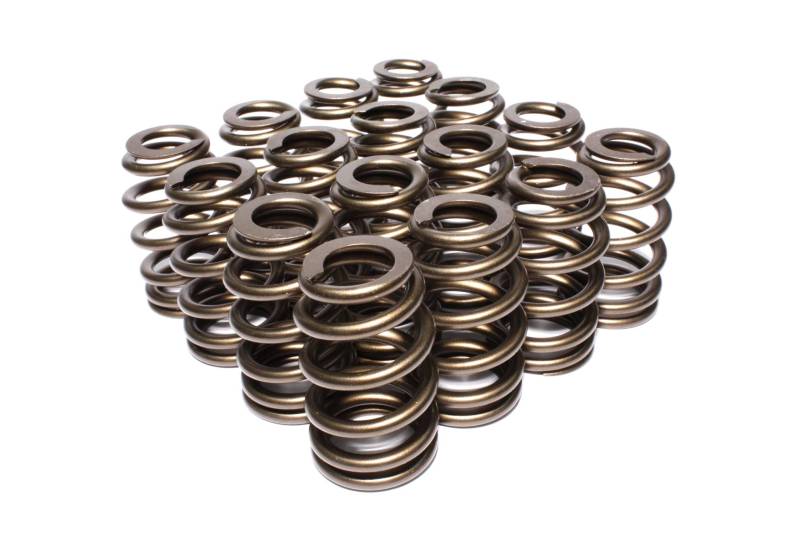

COMP Cams 26056-16 Race Sportsman 1.454" OD Beehive Springs 1.80" Installed 16Pc

Race Sportsman 1.454" OD Beehive Springs, 1.800" Installed Height, 16 Springs COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.

Part #	OD	ID	Seat Load	Open Load	Coil Bind	Rate (Lbs./In.)	Titanium Retainer	Steel Retainer	Cup Seat	Shims
26056	Top Bottom	1.1851.454	.7311.000	160 @ 1.800	420 @ 1.150	1.100	400	785	703, 705	4696, 4697, 4704	4757
