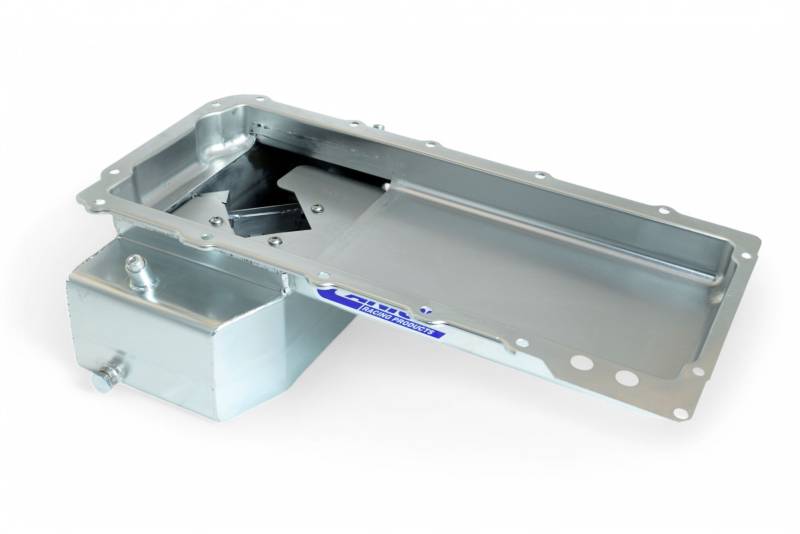

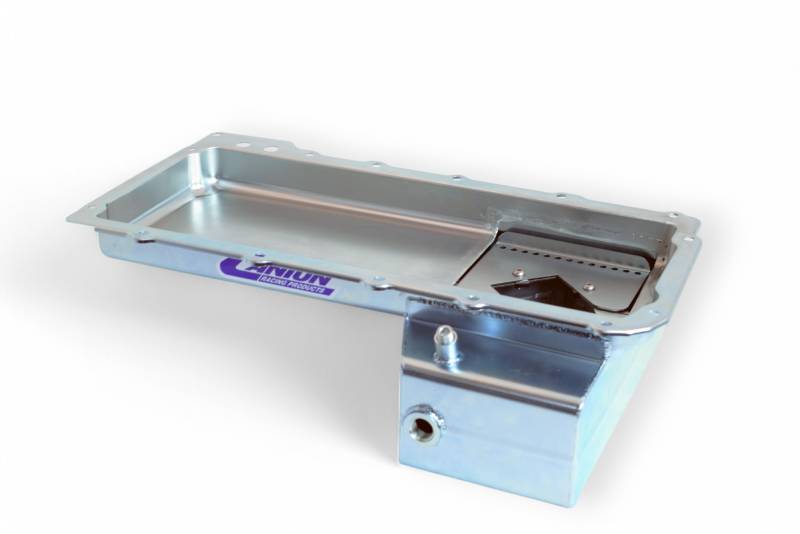

Canton Racing 15-276 5-5/8" Deep Front Sump Road Race & Drift Oil Pan GM LS1 LS6

15-276 Oil Pan GM LS1 LS6 5-5/8" Deep Front Sump Road Race and Drift Pan The15-276 front sump road race/drift car oil pan is designed for GM LS1/LS6 powered cars that require a shallow front sump oil pan. This pan is designed to use the GM pickup part number #12572654 from the 04-06 GTO. It?s diamond shaped baffle with 4 trap doors and removable windage/anti-slosh baffle provide the best oil control under demanding street and track conditions. With provisions for a pan mounted dipstick and 20 mm oil level sensor along with a 6.5 quart system oil capacity. 6.5 qt System Capacity 4.25" Stroke Clearance Diamond Shape Trap Door Baffle Bolt in Slosh Baffle 20 mm bung for low oil warning sensor (22-405 required if not used)
