Ridetech 24370801 Rear TQ Shockwaves 8000 Series w/6.9" Stroke & 1.7" Eye

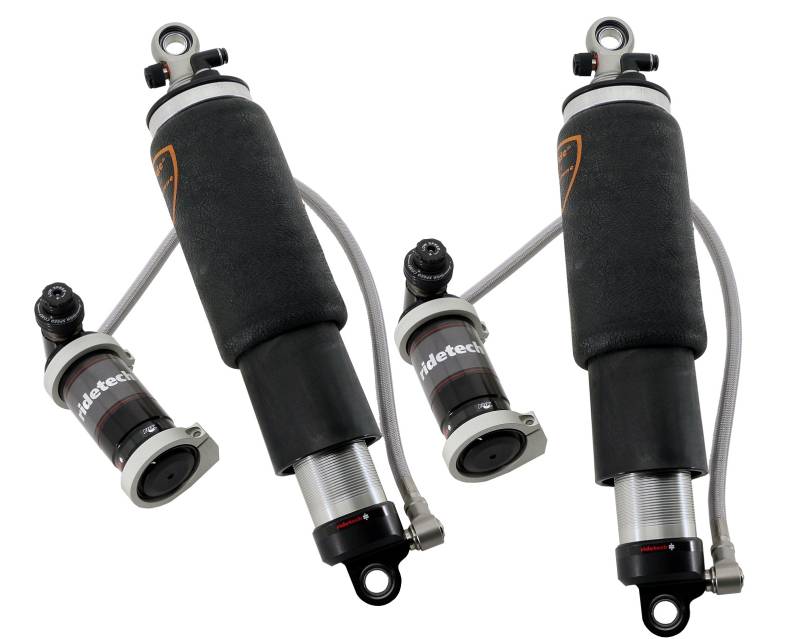

Rear TQ Shockwaves 8000 Series W/ 6.9 Inch Stroke And 1.7 Inch Eye Pair Of Triple Adjustable Shockwaves 5 Inch Rolling Sleeve W/ 1/4 Inch Fittings And Bearing Spacers 1/2 Inch And 5/8 Inch 13.75 Inch X 20 Inch W/ A 16.75 -17.5 Inch Ride Height RideTech TQ Series universal Shockwaves provide high performance handling, exceptional ride quality and incomparable reliability. TQ Series Universal Shockwaves can be custom configured to virtually any lenght or mounting style necessary.

The quality and performance are underscored by RideTech's world class technical support and a million and one mile warranty. We're here to help you choose the right Shockwaves for your application.

Likewise, we guarantee that they'll last. TQ Series Shockwaves come with a remote reservoir and feature 24-positions of Rebound, High Speed Compress and Lower Speed Compression adjustment to to help you fine tune the shocks to your driving preferences and vehicle demands.

The 8000 Series Shockwaves come utilize a Firestone 5 inch diameter sleeve air spring which is suitable for most straight axle rear applications.

Recommended Applications:

• Solid rear axle: Rear axle weight is less than 2000lbs.
• Not recommended for IFS installations … not enough load capacity

Diameter and load capacity: 5 inch diameter 8000 series = 1200 lbs. at 100 psi

Features:

• Single rebound adjustment PLUS dual stage high & low-speed compression
• Aluminum impact forged construction allows leak free operation

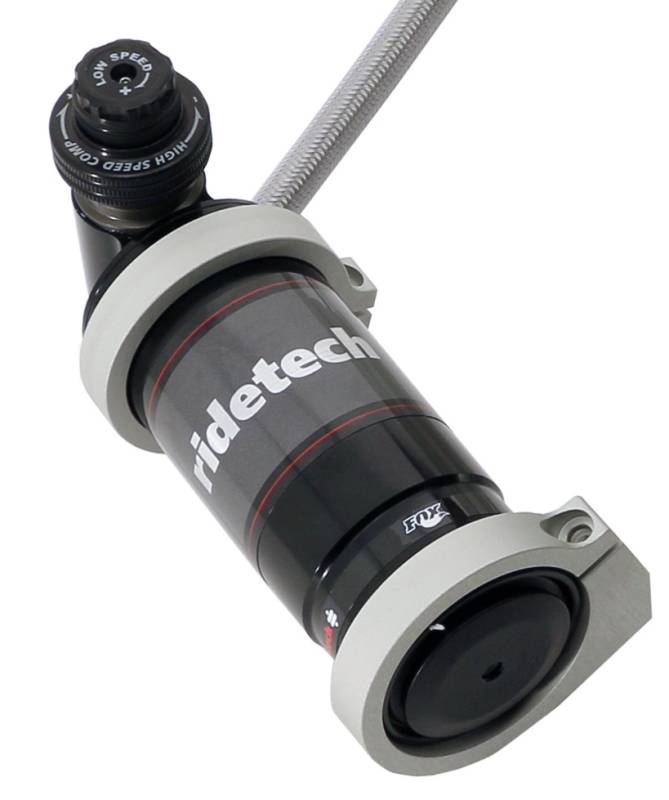

• Remote reservoir includes mounting brackets for easy installation
• Available in a wide range of stroke lengths, and mounting styles to fit large variety of applications
• Monotube design for superior oil control
• Easy & precise valve adjustment with 24 clicks
