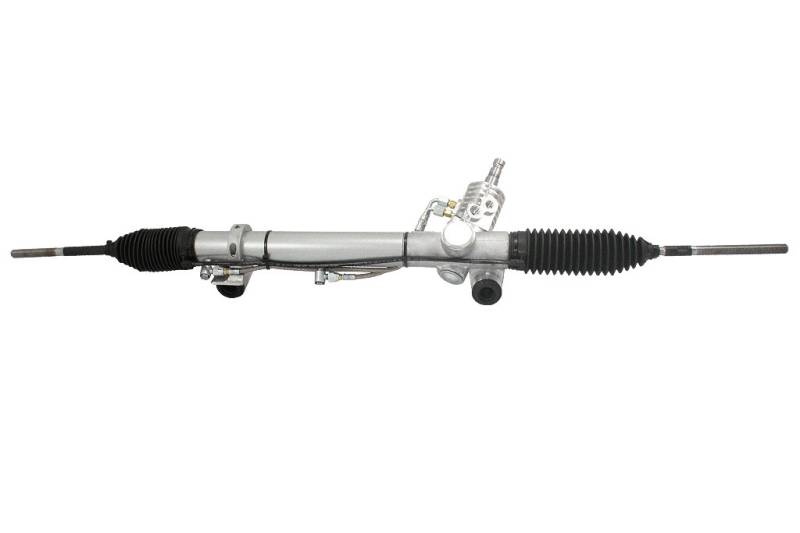

Flaming River FR40001PLN Power Rack & Pinion w/16 Mounts for 74-78 Mustang II

1974-78 MUSTAN II FRONT STEER POWER RACK W/16" MOUNTING-PLAIN POWDER COAT FINISH The only ALL NEW Mustang II (74-78) style Power Rack & Pinion available for Hot Rodders!The Billet-Power Front Steer Rack and Pinion (Mustang style) is designed to fit Mustang II applications (15.5" or 16" available). Made from all new components, including a new valve and piston, our Power Rack offers over 6-inches of travel, which provides the maximum turning radius for classic and street rod applications. Each Flaming River Power Rack is proudly made in the USA, and is fluid and pressure tested and certified before leaving our facility.

The FR40001 Rack is our Mustang II Style Power Rack designed for use in Custom Chassis builds for your Hot Rod or Muscle Car. This rack will have 16" Center to Center mounts, 24.25: Pivot point with an overall length of 45". The Inner Tie Rods are a male 9/16-18 RH male thread.

All new components - Including valve, piston, seals, bearings and bushings, and pinion and rack gears
More than 6 inches of travel for full turning radius
Lighter - Approximately 12 lbs. lighter than OE
Stronger - 1 inch diameter Rack Shaft
Longer cylinder and overlapping tube design for rack stability
Lifetime Serviceability Test Certification included with each unit


Note: FR1789P U-Joint is required for installation. 1974-78 MUSTANG II FRONT STEER POWER RACK W/16" MOUNTING - PLAIN POWDER COAT FINISH
