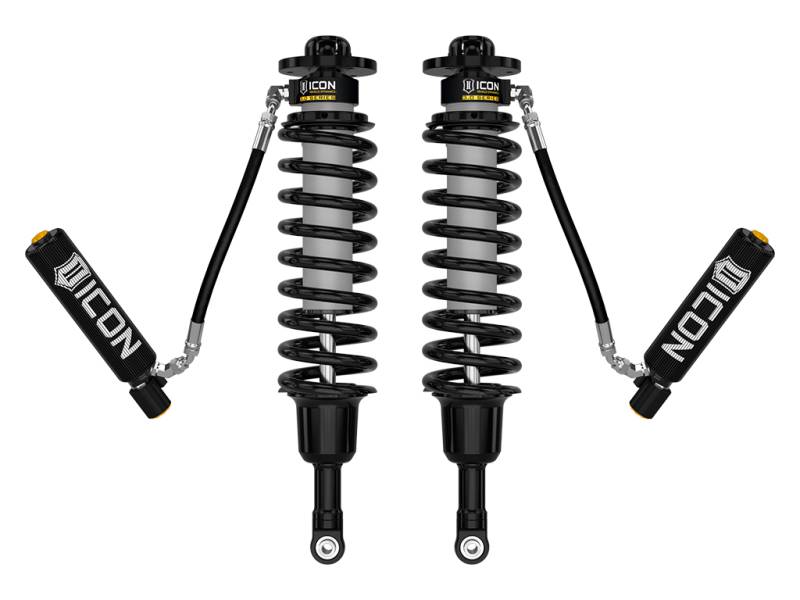

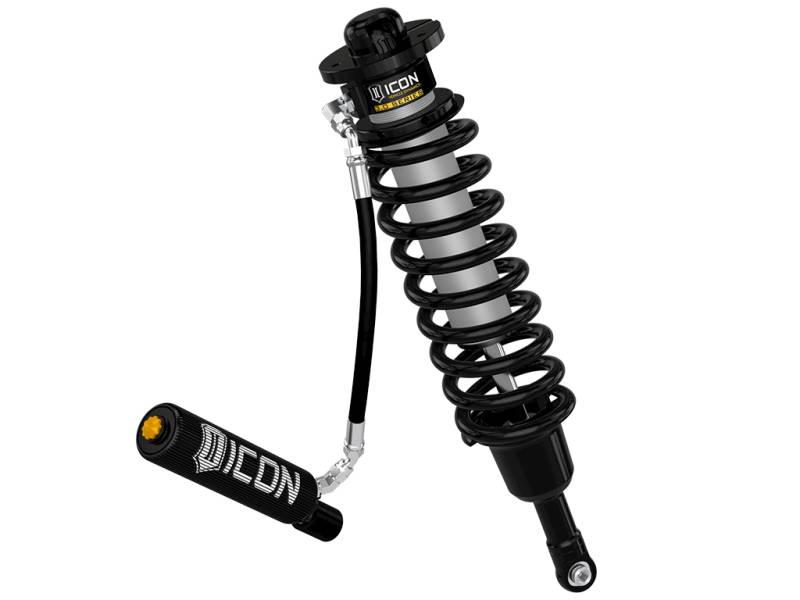

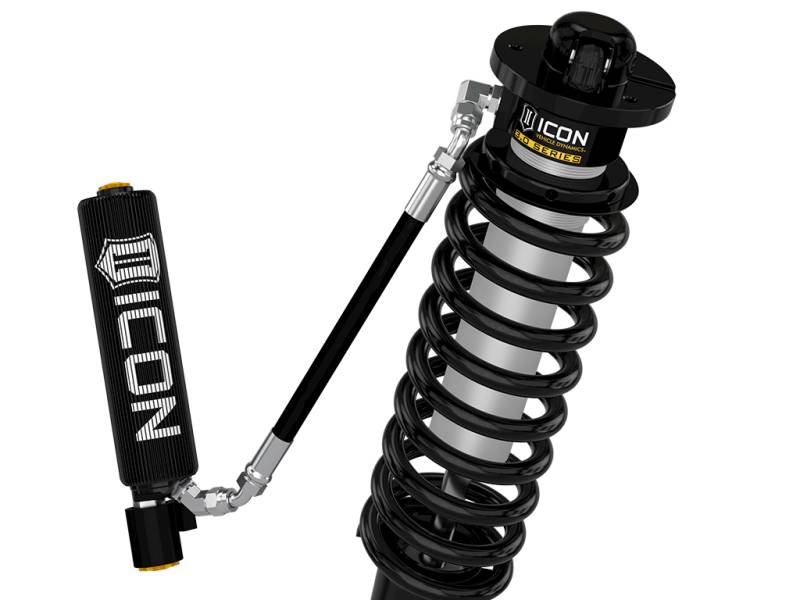

ICON Vehicle Dynamics 95003 FRONT 3.0 VS RR CDEV COILOVER KIT

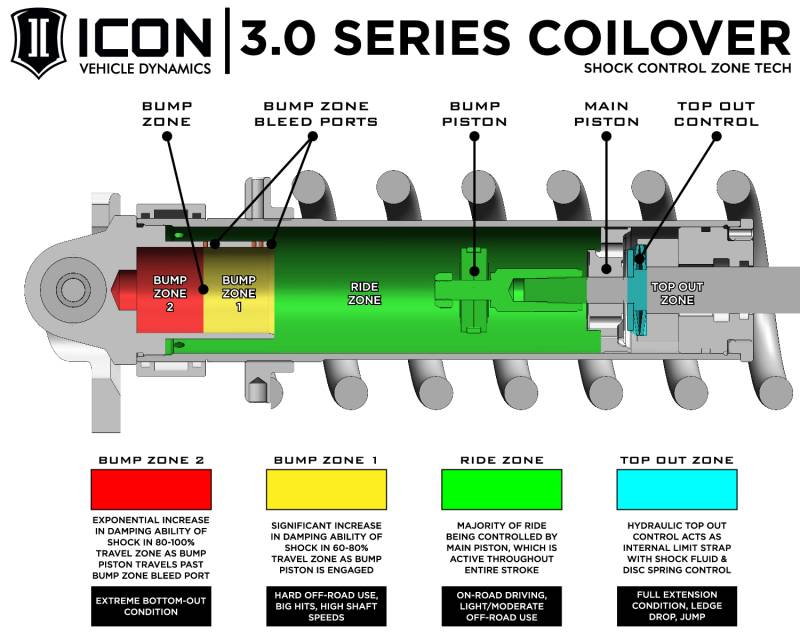

21-26 F-150 RAPTOR FRONT 3.0 VS RR CDEV COILOVER KIT The front-end geometry of the Gen 3 F-150 Raptor was found to be fairly similar to the previous model truck, however there are a few key differences that required a redesign of the coilover to be compatible with the newer generation chassis. Seeing this as an opportunity, the team was able to design a 3.0 Series coilover that has more shaft travel while utilizing a barreled coil spring for more efficient packaging and provide 1-3” of front lift height adjustment. The vehicle-specific valving featured in these shocks and the ICON-engineered coil spring work together to provide exceptional on-road ride quality with excellent off-road characteristics. ICON’s multi-stage hydraulic “Bump Zone” adds to the performance capability by providing an exponential increase in damping ability during the last 40% of compression travel for superior bottom-out resistance. In the ride zone, these 3.0 Series coilovers see a 50% increase in damping ability with the use of a significantly larger piston than what is found in the factory shocks. 10” finned aluminum reservoirs provide a generous amount of shock oil while also providing an increase in surface area compared to standard reservoir cylinders for enhanced cooling and consistent damping under aggressive off-road use. Adjustable coilovers yield 1-3” of front lift height Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use ICON's Compression Damping Electronic Valve (CDEV) technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC) Superior low speed control reduces body roll and increases on-road stability ICON’s multi-stage hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
