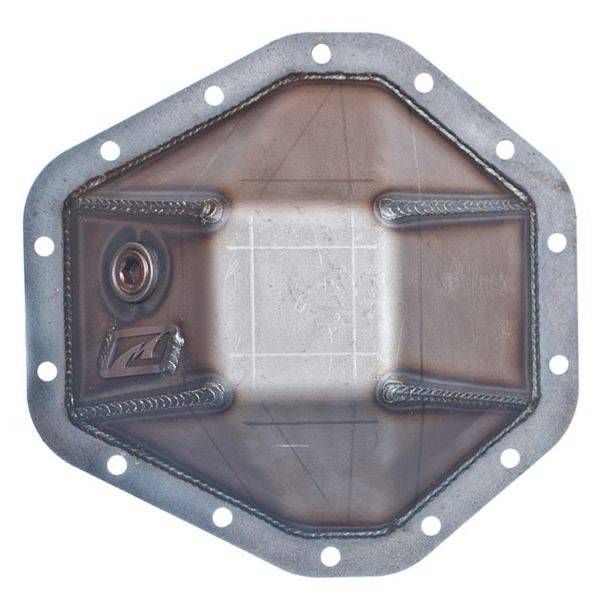

Motobilt MB4012 14-Bolt Differential Cover

The Motobilt 14 Bolt Diff Cover was designed with function in mind. The cover is made from high-strength steel plate and fully welded. The Motobilt GM 14 bolt full float heavy-duty steel diff cover has many features that separate it from others. This full-float HD steel diff cover features a 3/8 inch thick steel ring that will keep the cover from pulling away from the housing when dragging over rocks.

The GM 14 bolt full float HD steel diff cover also features the proven 1/4 inch thick steel plate design with an integrated 3/4 inch NPT fill plug. The fill plug on the GM 14 bolt full float HD steel diff cover allows for easy access, especially when a truss system is commonly used.

The GM 14 bolt full float HD steel diff cover is welded both on the inside and outside of the cover to ensure maximum penetration for superior strength. The Motobilt GM 14 bolt full float HD steel diff cover's design comes from over 14 years of differential cover testing and manufacturing experience. This diff cover ships bare steel and will need to be painted. We do not usually powder coat ours because the diff cover is going to take abuse from rocks. We recommend painting with spray paint to make touch it up easy. The standard 3/8 inch bolts and fill plug ship with the cover.

Specifications:

• 14 Bolt Differential Cover
• 1/4 inch thick steel plate design
• 3/8 inch thick steel ring
• 3/4 inch NPT fill plug
• Sold as each
• Lifetime warranty
• Ships bare steel and will need to be painted
• Weight: 14lbs

Tools:

• 9/16 allen head - For the fill plug.
