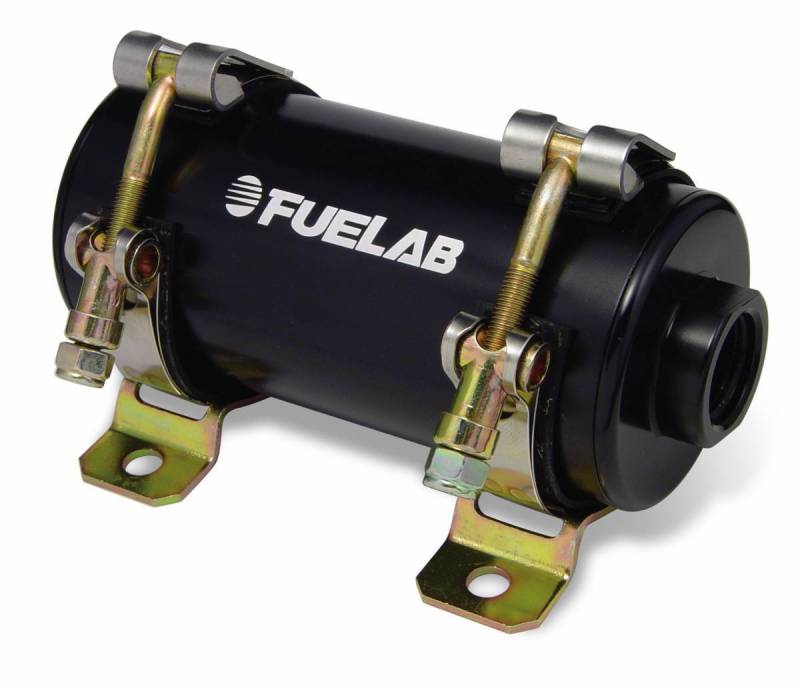

FUELAB 40402-1 Reduced Size CARB In Line Fuel Pump Rated 1600HP Street/Strip

170 GPH at 10 PSI, 35 PSI Max - Rated Up To 1600HP - This 180 GPH free flow rating fuel pump is programmed to deliver the maximum flow with the lowest current draw available. Nothing else like it!

Pump Features

• Black
• Compatible with gasoline, diesel, methanol, and ethanol
• High efficiency sling vane positive displacement pump
• Special housing shape for extremely quiet operation and steady pressure
• Carbon 9-vane construction with pressure balanced rotor for high reliability
• Backed by a limited lifetime warranty

Motor Features

• Lightweight super-efficient DC brushless motor reduces current draw
• Low mass rotor for high speed reaction to changes in speed and flow
• Powerful high flux density Neodymium rare earth magnets
• No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
• Wet motor design, no dynamic shaft seals that can wear out

Electronic Features

• Internal speed controller for variable flow operation
• 12 to 24 volt vehicle electrical system compatibility
• Accepts PWM input for speed control
• No expensive add-on voltage regulators or pump controllers required!
• Continuous duty-motor speed can be adjusted to meet fuel demand

Construction Features

• Compact, lightweight design, less than 3 lbs, overall length 6.9 inch, diameter 2.63 inch
• Billet Aluminum Construction with anodize per MIL-A-8625, Type II
• Special housing shape for extremely quite operation and steady pressure
• Long-life, multi-fuel compatible Fluorosilicone static seals
• Accepts standard or port style -10AN fittings
