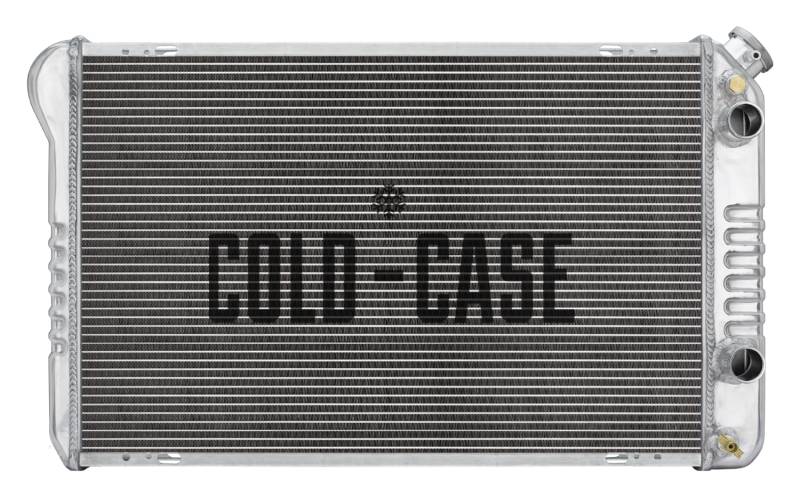

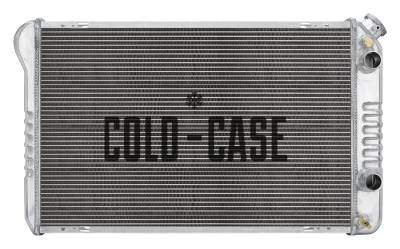

Cold Case Radiators LMP590-5 LS Swap Perf. Aluminum for 82-92 Camaro Firebird

1982-1992 Camaro/Firebird 3rd Gen LS Swap Aluminum Performance Radiator. The factory shroud will need modification.

These COLD-CASE radiators are Tig-welded 100 percent aluminum and absolutely beautiful. They feature original-appearing stamped tanks, oversized core tubes, and advanced fin design, adding up to a stock-appearing true-performance radiator.

You would be hard-pressed to spot the difference between an OEM replacement and a COLD-CASE, and you would never match the performance.

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• (2) 1.25 Inch Rows
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For automatic/standard trans
• LS Swap double pass

Radiator Specs

• Core Height 16.85 Inch
• Core Width 26.25 Inch
• Overall Height 18.5 Inch
• Overall Width 32 Inch
• Overall Thickness 3 Inch
• Upper Hose 1.25 Inch
• Lower Hose 1.5 Inch
• Tubes (2) 1.25 Inch Tubes
• Included Steam Port
