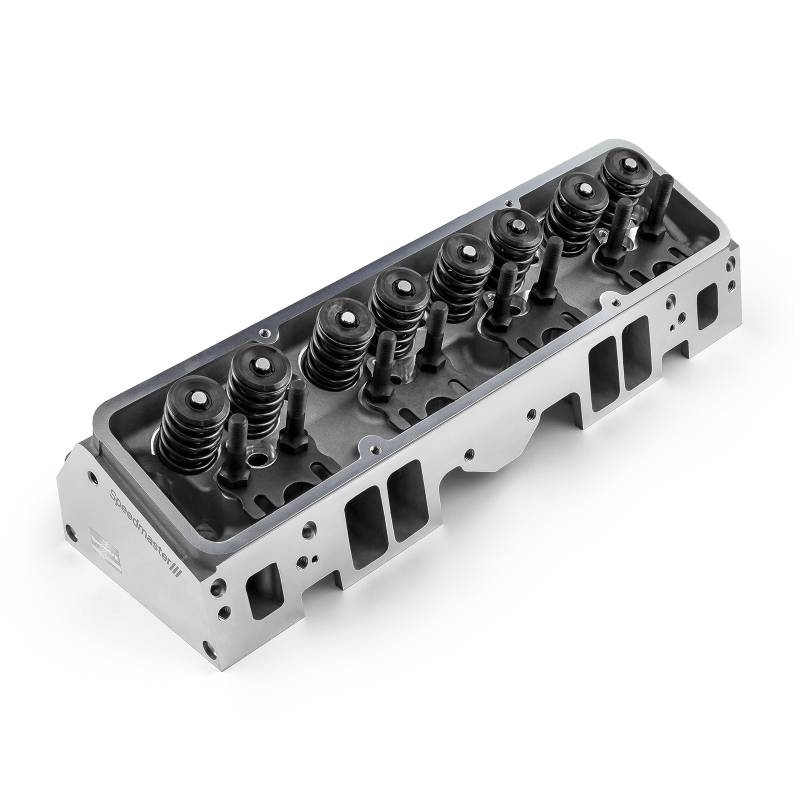

Speedmaster 1-281-001-01 190cc 64cc Angle Hyd Assy Cyl Head for Chevy SBC

Chevy SBC 350 190cc 64cc Angle Hydraulic FT DNA® Assembled Cylinder Head Assembly SpecificationsMax Lift: .550"Coil Bind: .740"Intake Install: 130lbs @ 1.8Exhaust Install: 130lbs @ 1.8Closed Sear Pressure: 110lbsOpen Seat Pressure: 300lbsAll Speedmaster 23deg. Small Block Chevy heads are available with Straight or Angled sparkplugs. Standard valve sizes are 2.020" Intake, and 1.60" Exhaust, both +.100" length. While the 2.02" valves are standard issue, all of our 23deg. aluminum heads can accept a 2.05" intake valve with minimal additional work. Some of our CNC ported heads (PCE281.1354-1448) are designed around 2.05" Intake valves. Our cast iron heads use 1.94" intake valves, and 1.50" exhaust valves. For those racers looking for a head with 800+hp potential, step up to our new 15deg heads! These heads have room for huge 2.180"-2.200" intake valves. Assembled with the finest premium components to provide your engine with optimal airflow for maximum engine performance Improved power throughout the rpm range for greater throttle response and top-end horsepower
