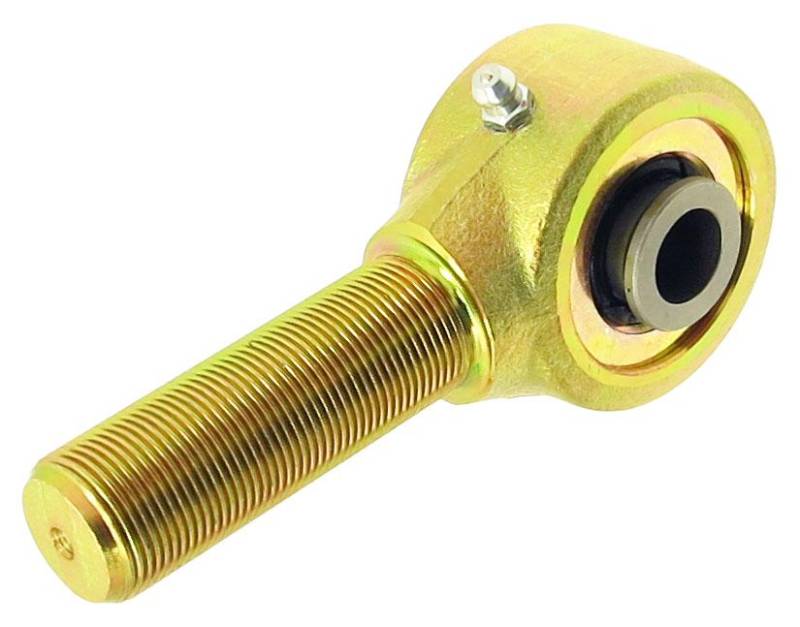

RockJock RJ-301600-101 Narrow Forged Johnny Joint 2" 7/8"-14 LH

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.

The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.

This specific joint features a narrow 2 inch diameter joint body, fitted with a zerk fitting for greasing, 2.3 inch of 7/8 inch-14 left hand threads on the shank, and a 2 inch mounting width ball with a .515 thru bolt hole. Finished in gold zinc plating.
