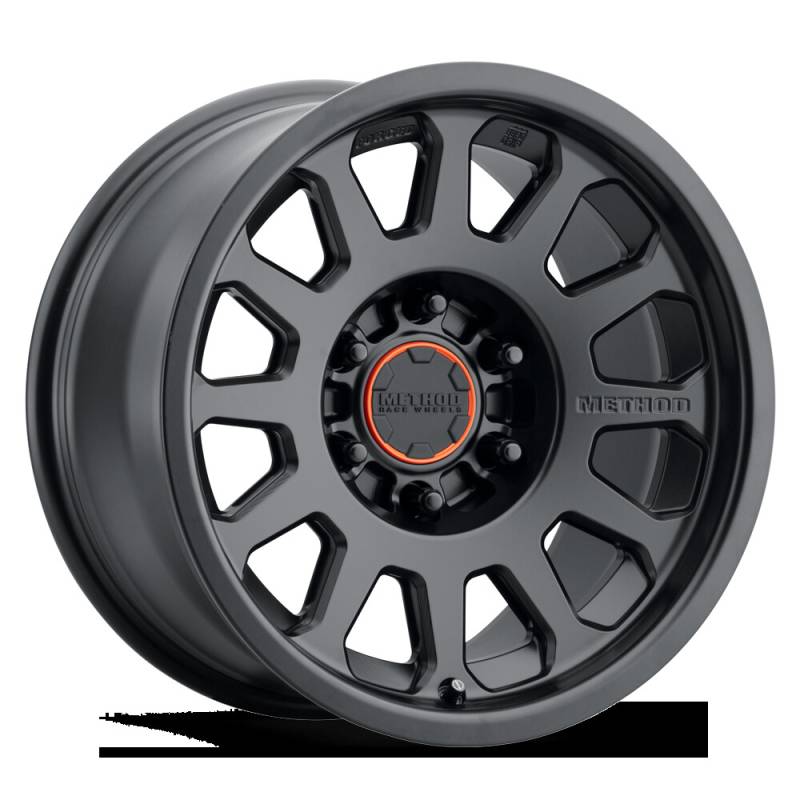

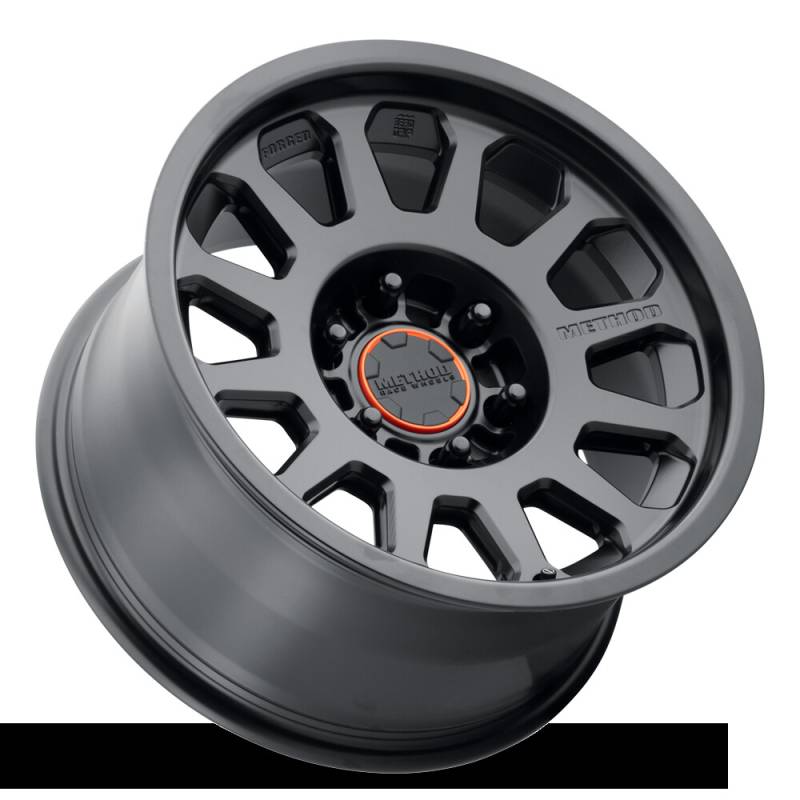

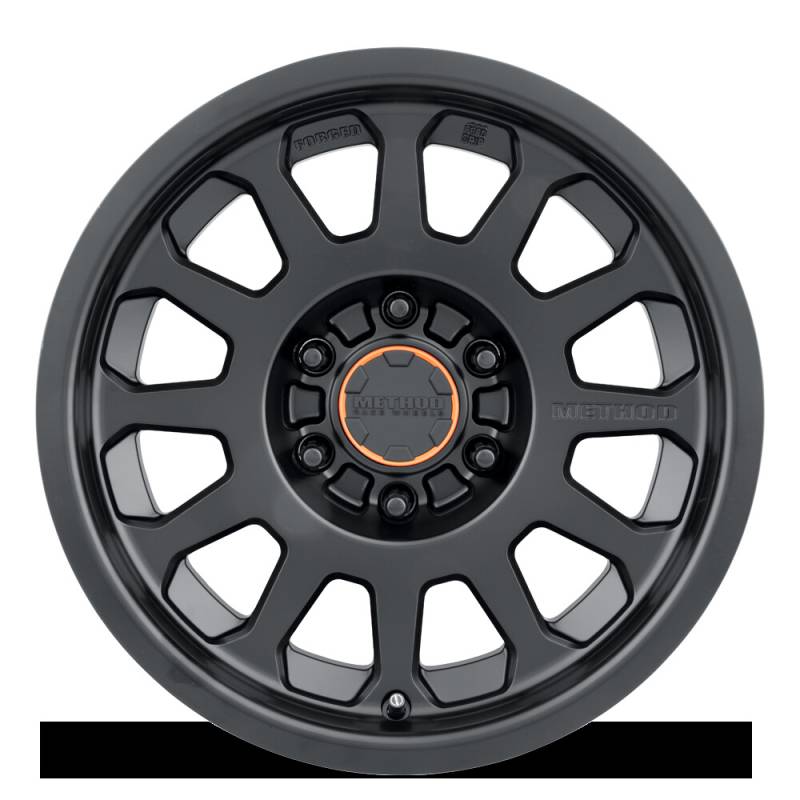

Method Race Wheels BLT10079060500 BLT100 17x9 0mm 6x5.5 78.1mm Matte Black

Designed specifically for the extreme performance of the Fox Factory Chevy Silverado. This wheel incorporates a 1 piece forged construction, Method's patented Bead Grip Technology, and a completely unique design.

The BLT100 wheel is a 6x5.5 bolt pattern wheel and will accept all 6x135 snap in accessory caps offered by Method.

Details:

• Series: BLT100
• Model: BLT100
• Wheel Diameter Inch: 17 Inch
• Wheel Width Inch: 9 Inch
• Bolt Pattern: 6x5.5
• Bolt Hole: 6
• Bolt Diameter: 5.5
• Offset mm: 0 mm
• Backside Spacing Inch: 5 Inch
• Hub Bore mm: 78.1 mm
• Wheel Weight LBS: 31.526 LBS
• Max Load LBS: 2650 LBS
• Color/Finish: Matte Black
• Application: 17x9, 6x5.5, 0 OS, 2650 lbs
• Cap Part: CP-BLT86S
• Cap Type: Snap In
• Hub Centric Yes/No: Yes
• Lug Hole Diameter mm: 16.2 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 175 mm
• Spoke Depth At 90mm: 9.6
• Spoke Depth At 100mm: 33
• Spoke Depth At 120mm: 42
• Spoke Depth At 160mm: 52
• Inner Wheel Radius At 50mm: 209
• Inner Wheel Radius: 207
• Cap Bore mm: 78.1 mm
• Cap Clearance Height mm First Obstruction: 32
• Cap Clearance Height mm End Of Cap: 32
• Lip Size mm: 31 mm
• Lip Size Inch: 1.22 Inch
• CBM: 0.0834859359999998
