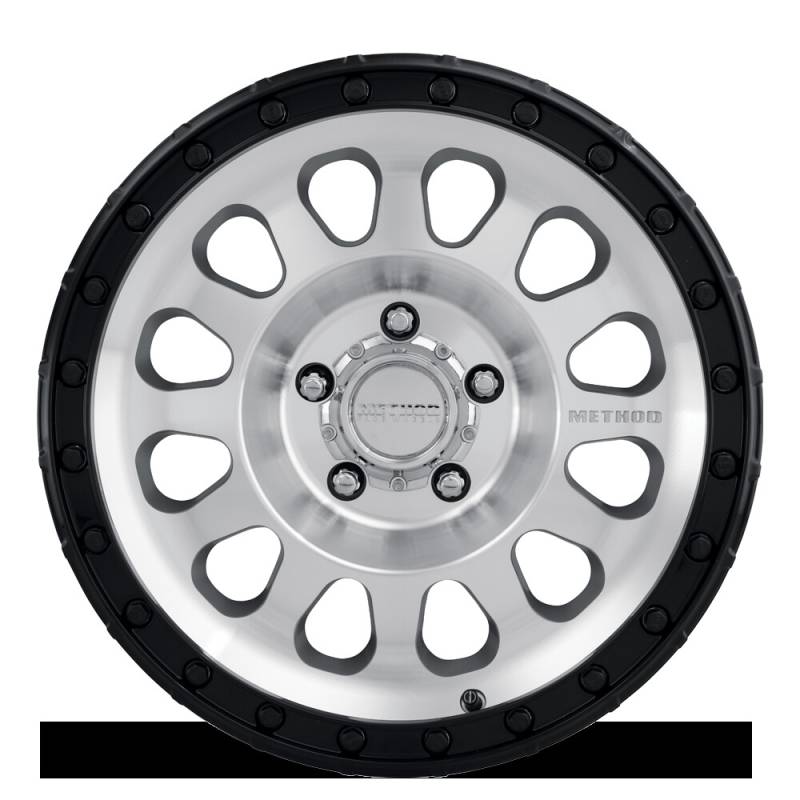

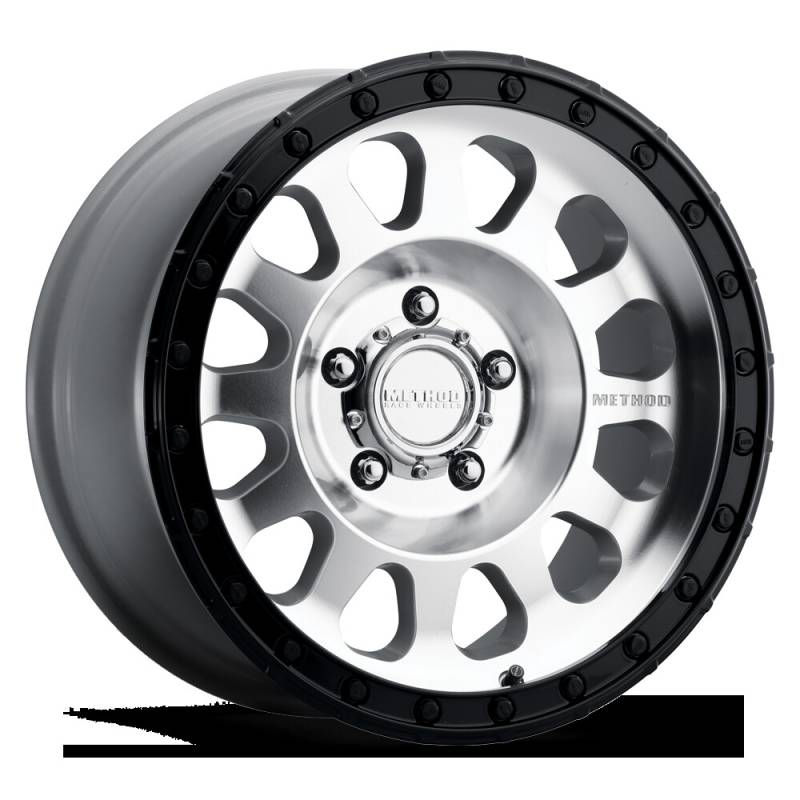

Method Race Wheels MR315785501600 MR315 17x8.5 0mm 5x5 71.5mm Machined Black

The 315 Standard wheel features a rugged 12 spoke design with a debossed Method logo. It is essentially the street legal version of our 103.

The lip undercut simulates a true beadlock wheel with extra pockets machined out around the edge for further weight savings. It boasts a strong load rating of 2,500 - 3,640 LBS.

Features and Benefits:

• Solid A356 aluminum with T6 heat treatment construction
• Firm 12 spoke design with debossed Method logo
• Machined pockets in outer lip for weight savings
• Replaceable Mrw lip bolts with optional colors available
• Bolt-on center cap with embossed Method logo
• Push through cap with embossed Method logo for 8 lug applications
• Hub centric fitments for common applications
• Industry’s best lifetime structural warranty

Details:

• Series: STREET (3XX)
• Model: MR315
• Wheel Diameter Inch: 17 Inch
• Wheel Width Inch: 8.5 Inch
• Bolt Pattern: 5x5
• Bolt Hole: 5
• Bolt Diameter: 5
• Offset mm: 0 mm
• Backside Spacing Inch: 4.75 Inch
• Hub Bore mm: 71.5 mm
• Wheel Weight LBS: 27.82 LBS
• Max Load LBS: 2650 LBS
• Color/Finish: Machined - Gloss Black Lip
• Application: 17x8.5, 5x5, 0 OS, 2650 lbs
• Cap Part: CP-T079L116-01-C
• Cap Type: Screw On
• Cap Screw: BT-91290A224
• Accessory Bolt PN: BT-BOLT BLACK
• Hub Centric Yes/No: No
• Lug Hole Diameter mm: 16.2 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 166 mm
• Spoke Depth At 90mm: 9
• Spoke Depth At 100mm: 21.8
• Spoke Depth At 120mm: 41.1
• Spoke Depth At 160mm: 44.7
• Inner Wheel Radius At 50mm: 207.8
• Inner Wheel Radius: 203.8
• Cap Bore mm: 71.5 mm
• Cap Clearance Height mm First Obstruction: 38
• Cap Clearance Height mm End Of Cap: 38
• Lip Size mm: 42 mm
• Lip Size Inch: 1.65 Inch
• CBM: 0.0766168399999998
