Zone Offroad ZONC13F 5" Suspension Lift Kit Fox Shocks Silverado/Sierra HD

Turn heads and drop jaws with this 5 Inch lift kit for your truck that gives you clearance for tires up to 35 Inch. This kit has everything you need to raise and level your 2011-2019 Chevy/GM 2500HD /3500HD truck.

If you're going to do it, do it right.
Features:

• Heavy-duty differential skid slate improves offroad protection.
• High-strength, 1/4 Inch steel construction crossmembers corrects lower control arm geometry.
• High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
• No differential trimming required.
• Rear lift block and longer U-bolts for easy installation and level stance.

Quick Specs:

• Front Lift Height 5 Inch
• Rear Lift Height 3 Inch
• Material Steel
• Front Lift Method Torsion Bar Drop
• Rear Lift Method Cast Blocks
• Lift Type Lift Kit
• Wheel Size 17 x 9
• Back Spacing 4.75 Inch
• Max Tire Size 35 x 12.5
• Wheel Size 2 20 x 9
• Back Spacing 2 6 Inch
• Max Tire Size 2 285 x 65
• Wheel Size 3 20 x 9
• Back Spacing 36 Inch
• Max Tire Size 3 35 x 12.5
• Finish Powdercoat
• Cutting Required Yes
• Accommodates Factory Wheels See Notes
• Welding Required No

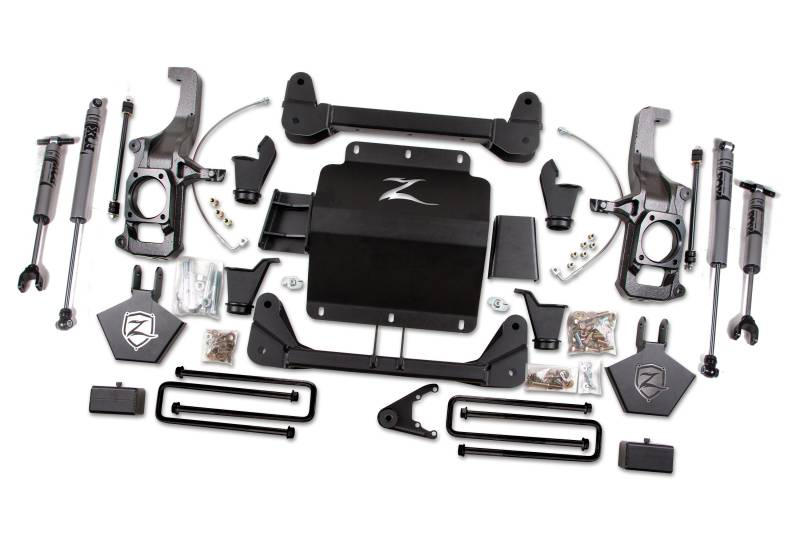

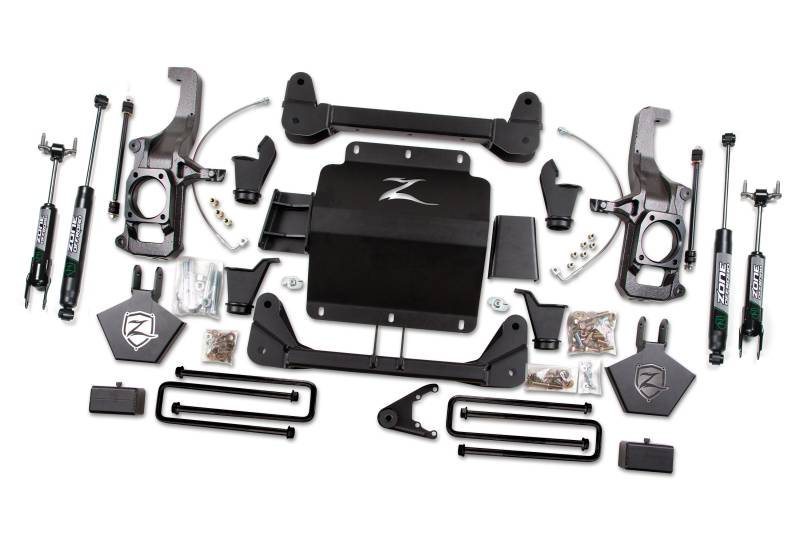

In The Box:

• All Necessary Mounting / Installation Hardware
• Crossmembers
• Differential Drop Brackets
• Skid Plate
• Steering Knuckles
• Torsion Bar Relocation Brackets

Kit Components:

• FOX98450613 Fox Adv Shock 24.91 x 16.12 x 2-BP/Clev 2 810156368349
• FOX98450759 Fox Adv Shock 30.05 x 18.46 x 2-EB1/EB1 2 810156368066
• ZONC2630 2011-2019 Chevy/GMC HD 5.0 Inch Front Box Kit (1of5) 1 711745597167
• ZONC2631 2011-2019 Chevy/GMC HD 5.0 Inch Front Box Kit (2of5) 1 711745597174
• ZONC2632 2011-2019 Chevy/GMC HD 5.0 Inch Front Box Kit (3of5) 1 711745597181
• ZONC2633 2011-2019 Chevy/GMC HD 5.0 Inch Front Box Kit (4of5) 1 711745597198
• ZONC2634 2011-2019 Chevy/GMC HD 5.0 Inch Front Box Kit (5of5) 1 711745597204
• ZONC2638 2011-2019 Chevy/GMC HD 3 Inch w/Top Overload 1 711745597211
