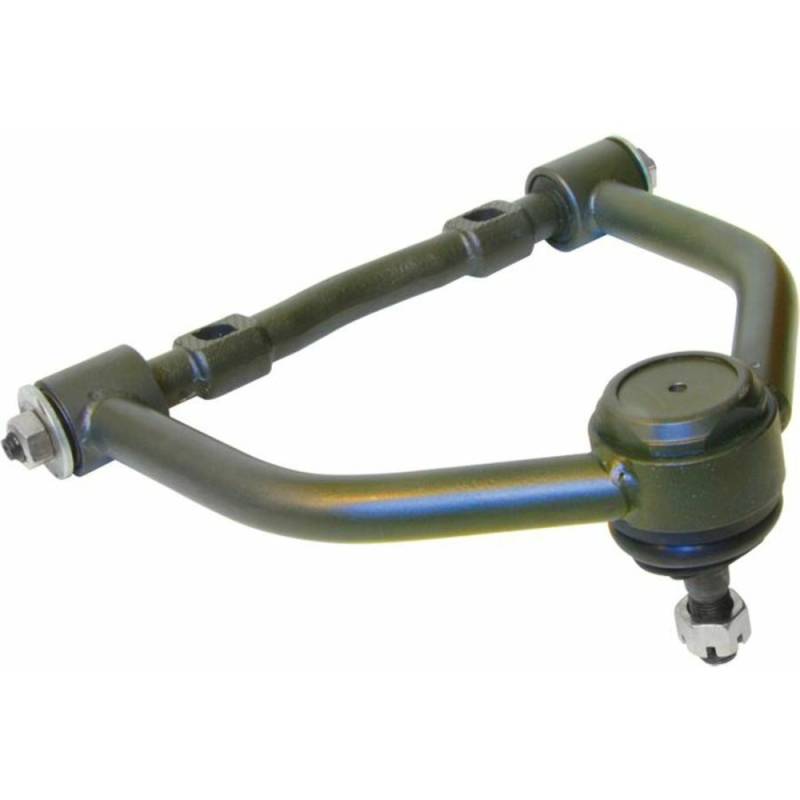

Helix HEXCA11 Mustang II Tubular Upper Control Arm Assembly Each

Mustang II Tubular Upper Control Arm Assembly by Helix is the Grade A upper A-arm that your hot rod needs for maximum performance! These control arms are a fully assembled ready-to-install direct replacement for stock upper control arms on any Helix Mustang II IFS application and will fit most stock or aftermarket crossmembers without modification. The Helix upper control arm assembly features 12 point TIG welded construction for maximum strength and durability, corrosion/rust resistant painted surface (except powder coated cross shaft), full .120 wall aircraft quality tubular design which is lighter weight yet much stronger than OE stock design and provides for more clearance for body sheet metal. Complete assembly includes cross shaft with polyurethane no-squeak bushings & steel sleeves, knurled surface mount area* on cross shaft, screw-in ball joint with urethane dust boot and grease fitting, castle nut w/ cotter pin, castle nut spacer, 2 ea. Nyloc nuts and plain washers. These upper control arms are a stock width design (non-narrowed) and ready to drop in immediately out of the box. For all of your suspension needs, Helix delivers the winning edge for maximum performance when it really counts! *Cross Shaft has knurled surface area on both sides of mounting points which provides bite into mounting surface area so as to prevent slippage and hold alignment settings. Surface area on cross shaft is unfinished and repainting/refinishing shaft is not recommended because any type of body filler or thick paint will prevent knurls from biting properly which can cause slippage and loss of alignment adjustment. Stay ahead of the pack with Helix Suspension.

• Application :: Mustang II IFS
• Type :: Tubular
• Tube Finish :: Plain Painted Surface
• Cross Shaft Finish :: Powder Coated
• Screw In Ball Joint :: Yes
• All Steel Construction
• TIG Welded :: Yes
• Grease Fitting Included :: Yes
• Urethane Dust Boot :: Yes
• Fully Assembled :: Yes
• Adjustable :: No
• Tube O.D. :: 1 in. (25 mm)
• Full .120 Wall Tubing
• Center to Center Length :: 8? (20.32 cm)
• (Ball Joint Shaft Center to Cross Shaft Eye Center)
• Overall Width :: 10.5? (26.67 cm)
• Overall Length :: 9.5? (24.13 cm)
• Cross Shaft O.D. :: .78? (19.8 mm)
• Knurled Mounting Surface :: Yes
• Quantity :: Each Sold Separately
• Pair :: No
• T-Bolts Included :: No
• Castle Nut :: 1
• Cotter Pin :: 1
• Bushing/Sleeves :: 2
• Plain Washer :: 2
• Nyloc Nut :: 2
• Castle Nut Spacer :: 1
