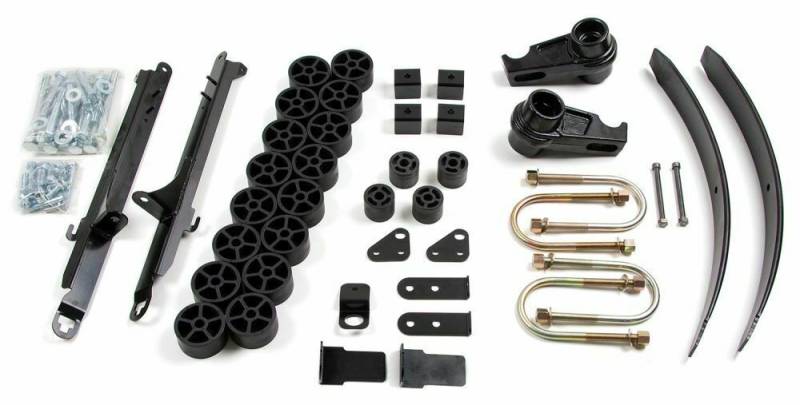

Zone Offroad C1355 3.5" Combo Lift Kit Chevrolet

Zone Offroad has developed a comprehensive 3.5" lift kit that combines the Zone 1.5" body lift and Zone 2" front and rear lift kit. The body lift includes class 10.9 zinc plated body hardware, crush proof body lift blocks, fully integrated radiator relocation mounts, tow hook relocation and front bumper relocation. Based on model year, Zone offers two rear bumper bracket kits that relocate the bumpers to maintain the factory relationship with the body while still leaving the factory receiver hitch in the stock location and functional. This easy to install torsion bar key leveling kit is designed to lift the front of your Chevrolet Colorado or GMC Canyon 2 inches. The kit includes front shock spacers to not only compensate for the added lift, but gain wheel travel by allowing the suspension to fully droop to the factory frame limiter. The rear is lifted with a pair of add-a-leafs for added capacity and reduced axle wrap.

Features:

-- Body Lift Features

• Class 10.9 zinc plated hardware
• Fully integrated radiator relocation mounts
• Front bumper 1.5" spacers and detailed trimming instructions
• Tow hook relocation & reinforcement included

-- Suspension Lift Features

• 100% resonant frequency tested torsion keys
• Includes front shock spacers
• Add-a-leaf will lift the rear while reducing unwanted spring wrap and improved towing or hauling peformance.
• Optional custom valved rear shocks available in the accessories

Notes:

• For automatic transmission models only
• Works with 2/4wd, all cab configurations
• Trimming of front bumper plastic valance or frame required for front bumper relocation
• Bumper hitch not for towing after lifting rear bumper, factory/aftermarket receivers are not affected by lift
• Radiator & condenser brackets not designed for V8 models.
• Welding optional and required only if front factory tow hooks are retained.

Quick Specs:

• Front Lift Height: 3.5"
• Front Lift Method: Torsion Bar Keys & Body Lift
• Rear Lift Height: 3"
• Rear Lift Method: Add-A-Leafs & Body Lift
• Install Time Hrs: 4-5

Wheels/Tires:

-- Wheel Size: 16x8

• Back Spacing: 5"
• Max Tire Size: 32x11.50
