Tuff Country 97086 Axle Lift Block Kit for 90-97 Cherokee XJ

Tuff Country P/N 97086 block kit includes lift blocks and u-bolts designed to raise the rear of your Cherokee. Installation is done by inserting the cast lift blocks between the factory rear leaf springs and axle. Extended zinc plated rear u-bolts designed specifically for the Cherokee are used to replace the factory u-bolts.
Details:

• Rear Block and U-Bolt Kit
• Lifts the rear of your vehicle 3 inches
• Maintains a factory ride
• Custom made for the application
• Lift blocks are constructed of cast iron
• Blocks are tapered to eliminate or reduce driveline vibration
• Zinc plated corrosion resistant extended u-bolts
• Simple Bolt-on Installation
• Made In The USA
• Sold As A Kit

Fits:

• 1987-2001 Jeep Cherokee 4WD (w/ 2.75 inch rear axle)

Installation Notes:

• Aftermarket wheels with 4.5 inch or less backspacing required to install properly
• On most applications factory length shocks must be replaced with extended length shocks when installing rear blocks 2 inches in height or taller

Tech Specs:

• Amount of Lift: 3 Inches Rear Lift
• Blocks Tapered: Yes
• Lift Block Dimensions: 3 Inch H x 2.5 Inch W x 4.75 Inch L
• U-Bolt Dimensions: 1/2 Inch x 2.75 Inch x 9.875 Inch - Square

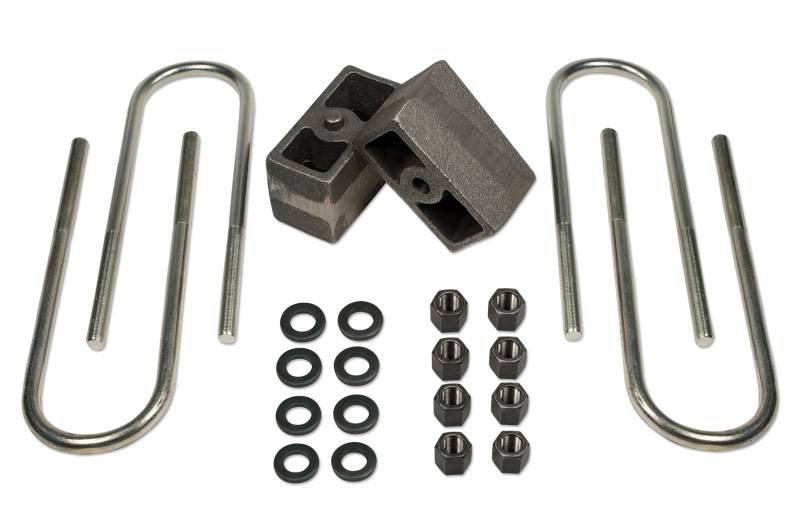

• Includes: 2) 3 Inch Cast Iron Lift Blocks, 4) Rear Axle U-bolts, 1) Hardware Bag (nuts and washers)
