ICON K53252 Suspension Lift for 23-24 Sequoia 4WD/RWD Coil

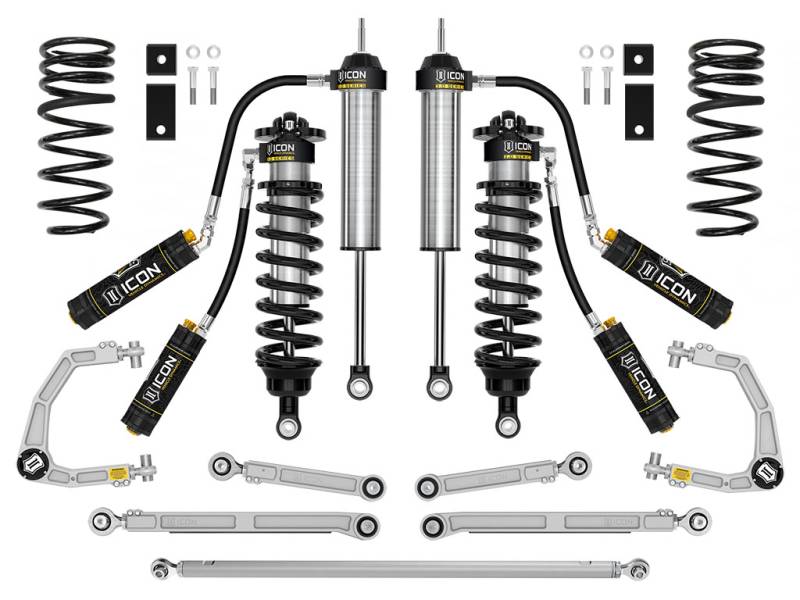

23-25 SEQUOIA 3-4.25" STAGE 2 3.0 SUSPENSION SYSTEM BILLET CDCV This Stage 2 system features the 2023-2025 Toyota Sequoia VS 3.0 Series remote reservoir front coilovers equipped with CDC Valves. These adjustable coilovers allow up to 3-4.25” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. The larger 3.0 Series shocks offer 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Additionally, ICON’s Vehicle-specific shock length yields the maximum travel possible (up to 40% increase over stock), all translating into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Vehicle specific design for 2023-2025 Toyota Sequoia 3.0 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling Adjustable front ride heights from 3-4.25” of front lift over stock All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
