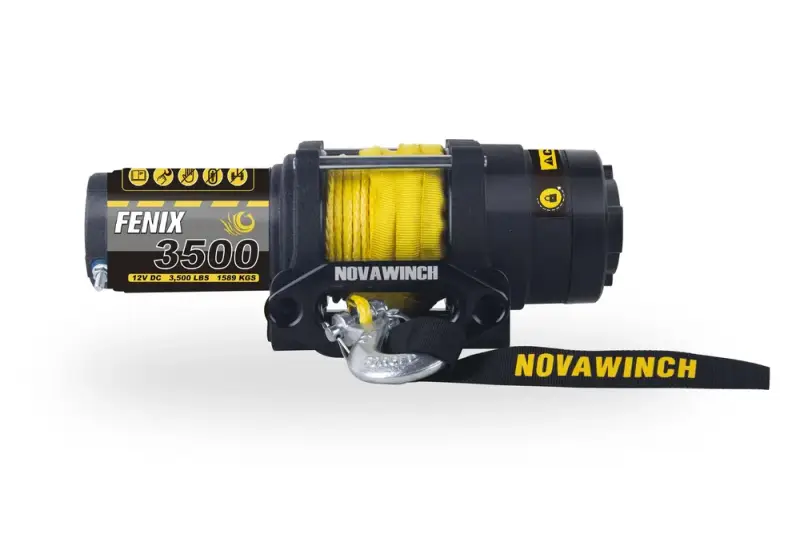

Novawinch 701001068817 Fenix35 3500lb 12V Electric ATV Winch Synthetic Cable

The Fenix Winch is the result of a joint engineering effort spanning over 10 years. Our quest was to build the perfect winch for recovery and pulling jobs with the reliability and build quality NOVAWINCH is known for. The results is the NOVAWINCH FENIX, an IP68 rated winch built with better components for unmatched performance.

Features:

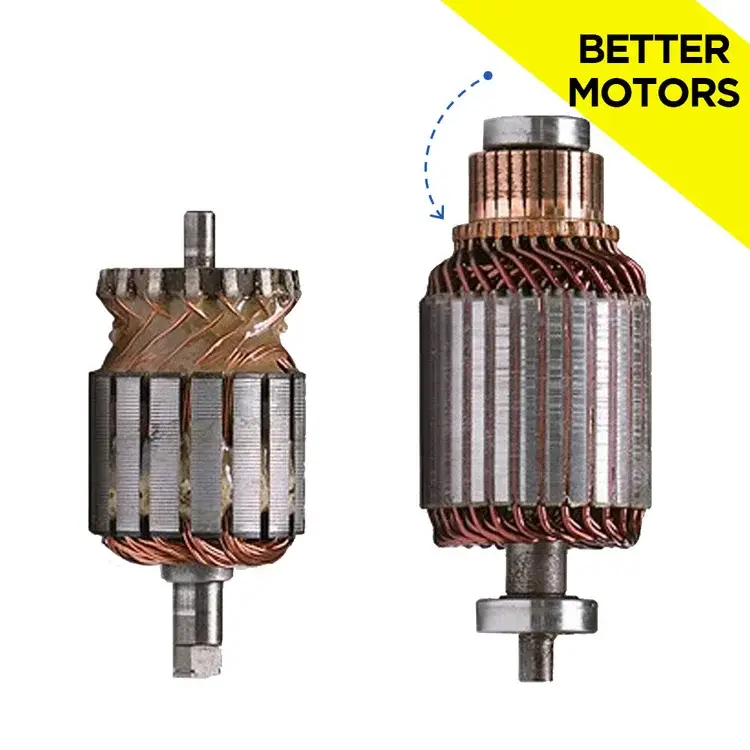

• Better Motors. With fatter windings, the FENIX winch can provide more power to the drum and tax the motor less while doing it. Sealed cartridge roller bearings (instead of competitors' bushings) keep the drum loose reducing drag while providing a smoother experience.

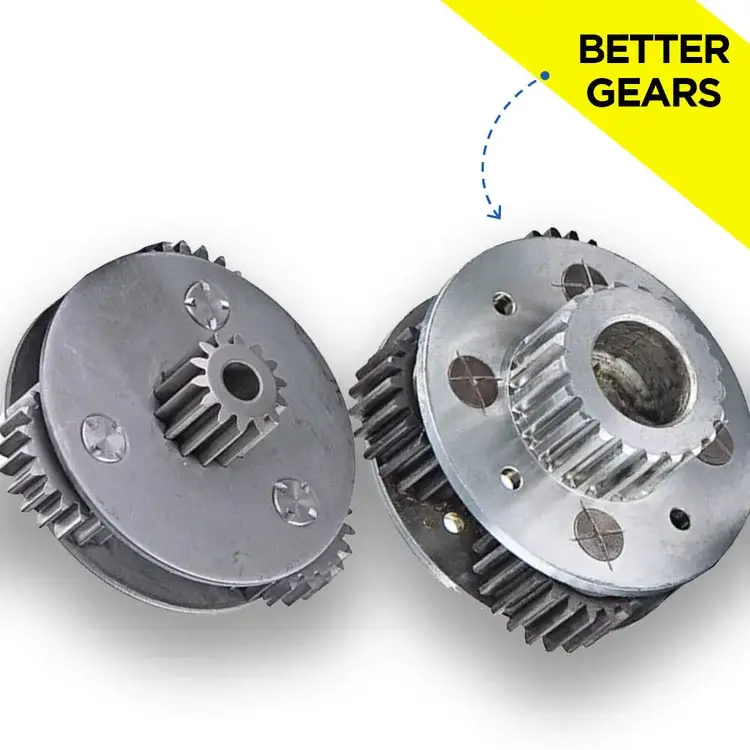

• Wider, cut-steel gears spread loads leading to better engagement, a more secure power transfer and longer service life; that's music to any winch user.

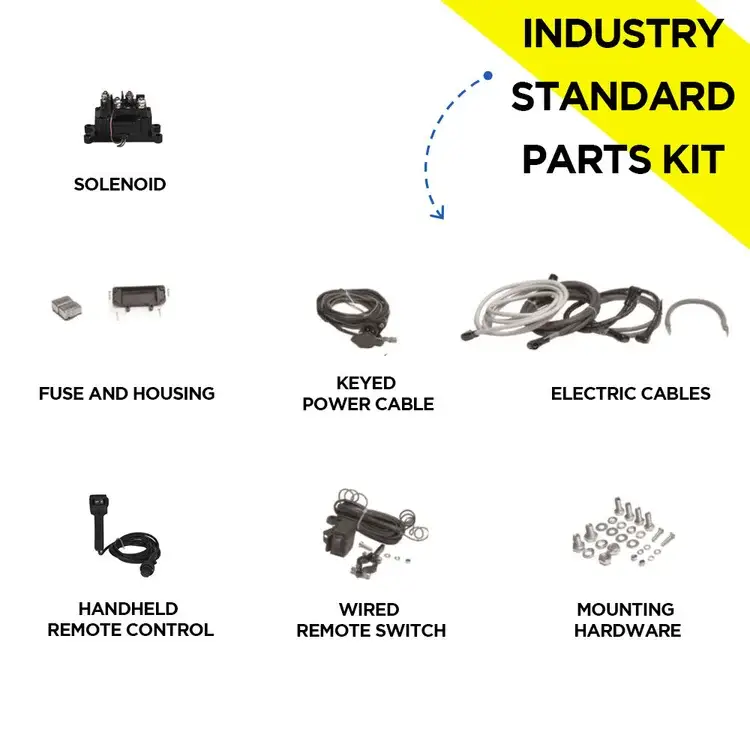

• All the parts you expect including an inline fuse (no one wants an electrical fire). From mounting bolts to electrical cables, all you need is a vehicle-specific mount kit.

Specifications:

• Rated Line Pull 3,500 lbs (1,589 kgs)
• Motor: Sealed 4.1 HP/3.1kW Permanent Magnet
• Gear Box 3-Stage Planetary
• Gear Ratio 140:1
• Clutch Ergonomic 360 Degree Control
• Braking Action Mechanical, Automatic Load Holding Brake
• Aluminum Hawse Fairlead
• Synthetic Rope 3/16"x 50' (4.8mm x 15.2m)
• Remote Waterproof handheld remote, 9.85' (3.0m); Waterproof Mini-Rocker 9.85' (3.0m)

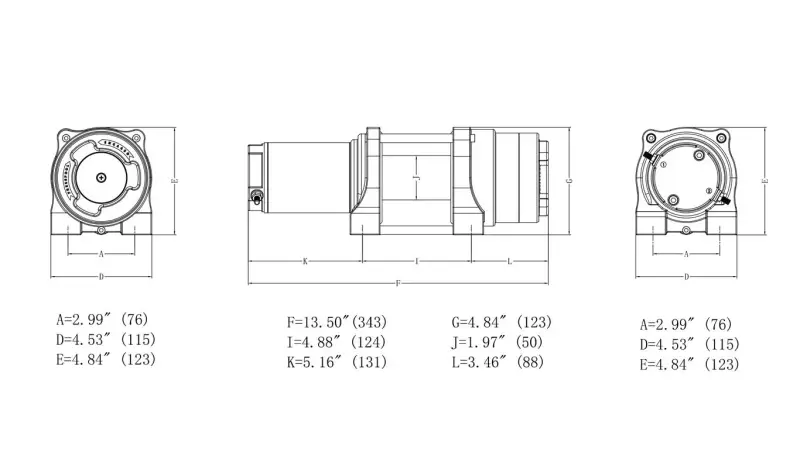

• Dimensions 13.5" L x 4.84" D x 4.84" H (343mm x 115mm x 123mm)
• Mounting Bolt Pattern Industry standard 3.0" x 4.8" (76mm x 124mm)
• Weight 29 lbs (13.1 kgs)

Performance:

• Line Pull - No Load
  • Line Speed 24 FPM (7.3MPM)
  • Motor Current 35 Amps
• Line Pull - Full Load
  • Line Speed 10.2 FPM (3.1MPM)
  • Motor Current 260 Amps
