Zone Offroad ZONC59F 6.5" Lift Kit w/FOX Shocks for 14-18 Silverado 1500 4WD

Take your Silverado/Sierra 1500 to new heights with this 6.5 inch lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35 inch tires.

Quick Specs:

• Front Lift Method: Cross Member and Strut Spacer
• Front Lift Height: 6.5 Inch
• Rear Lift Method: Block
• Rear Lift Height: 5 Inch
• Shocks Included: Yes

Shocks:

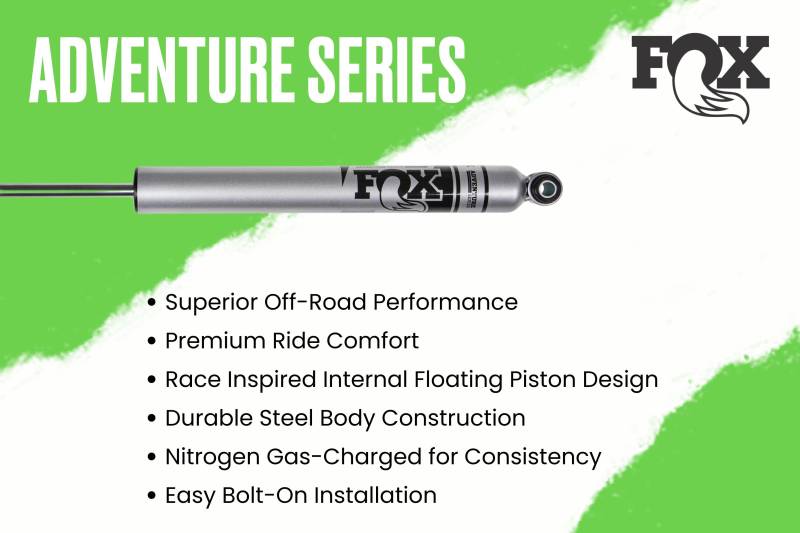

• FOX 2.0 Adventure Series
  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting silver coated finish

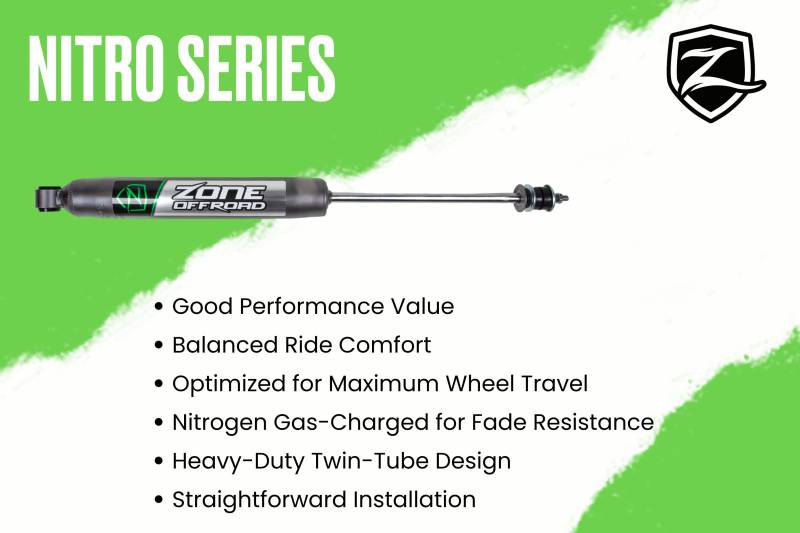

• Nitro Series
  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

Factory Control Arm Type
Important: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the Cast Steel Control Arm kit. Stamped Steel and Aluminum control arm equipped models will require the Aluminum Control Arm kit. Be sure to verify which factory control arms your truck has before ordering.

Features:

• Corrects suspension, steering, and drive-line geometry for great on-road handling and improved off-road performance.
• FMVSS No.126 compliant to work with your vehicle's stability and traction control systems without lighting up your dash like a Christmas tree.
• Heavy-duty differential skid slate improves off-road protection.
• High-strength, 1/4 inch steel construction crossmembers correct lower control arm geometry.
• High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
• Multi-point differential relocation brackets secure front differential for improved CV operating angles.
• Proudly made in the USA.
• Rear lift block and longer U-bolts for easy installation and level stance.
• Weld-in frame support plate for additional strength.

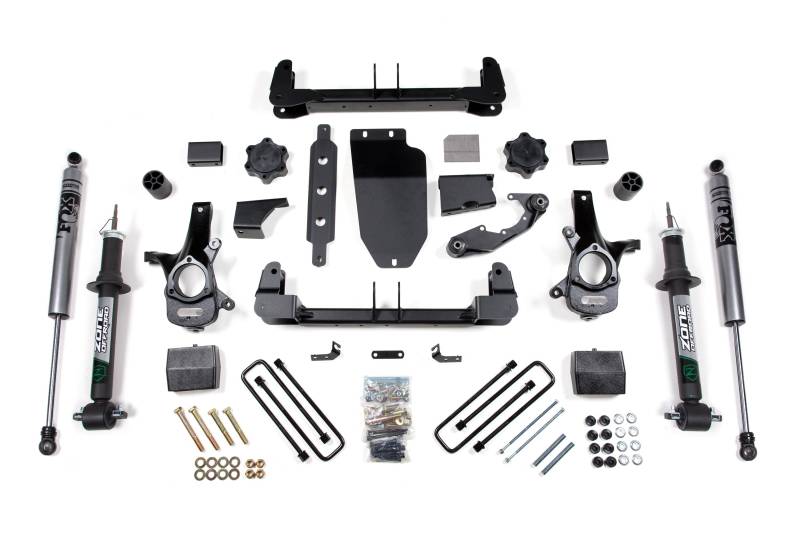

Kit Components:

• FOX98450759 (x2)
• ZONC2650
• ZONC2651
• ZONC2654
• ZONC2657
