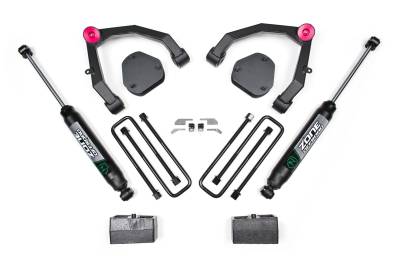

Zone Offroad ZONC30F 3.5" Lift Kit w/FOX UCA Shocks for 07-13 Chevy 1500 2WD

This lift kit is built around heavy-duty replacement upper control arms that dwarf the factory components and provide a significantly improved range of motion. These upgraded UCA's are made from fully welded, 1/8 Inch steel plate and CNC-machined ball joint and bushing mounts.

The high-quality MOOG ball joints can handle heavy-duty use, and they work in conjunction with stock-style rubber mount bushings to provide a quiet ride. A fully integrated front differential drop and differential skid plate system relocates the differential for optimal driveline angles.

Strut spacers provide a full 3.5 Inch of lift and install easily on the factory struts without the need of a strut compressor. A rear 3 Inch block and U-bolt system nets 2 Inch of rear lift and provides an athletic level vehicle stance
Quick Specs:

• Front Lift Method: Strut Spacer and Upper Control Arm
• Front Lift Height: 3.5 inch
• Rear Lift Method: Block
• Rear Lift Height: 2 inch
• Shocks Included: Yes

Shocks:

• FOX 2.0 Adventure Series
  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting silver coated finish

Features:

• Fully welded, heavy duty upper control arms that dwarf the factory arms.
• CNC-machined UCA bushing and ball joint cups.
• OE rubber bushings and greasable factory style ball joints for quiet, reliable, and low maintenance operation.
• Improved UCA range of motion compared to stock arms
• UCAs utilize replaceable ball joints

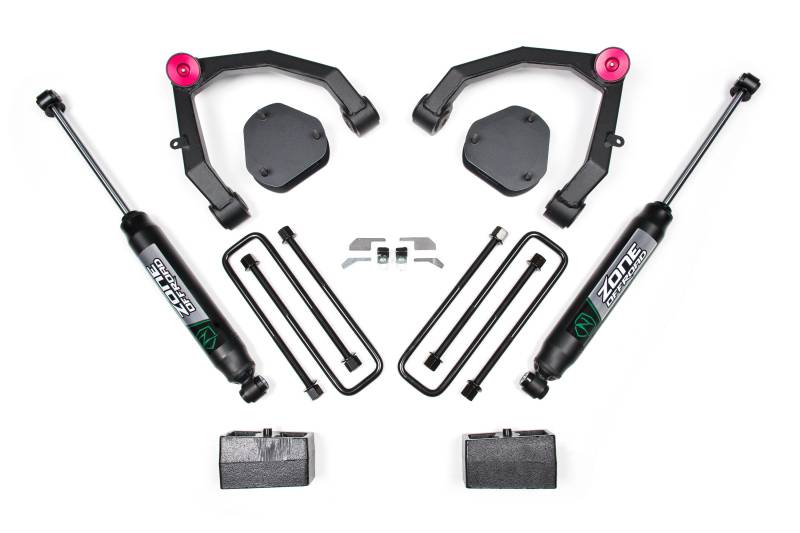

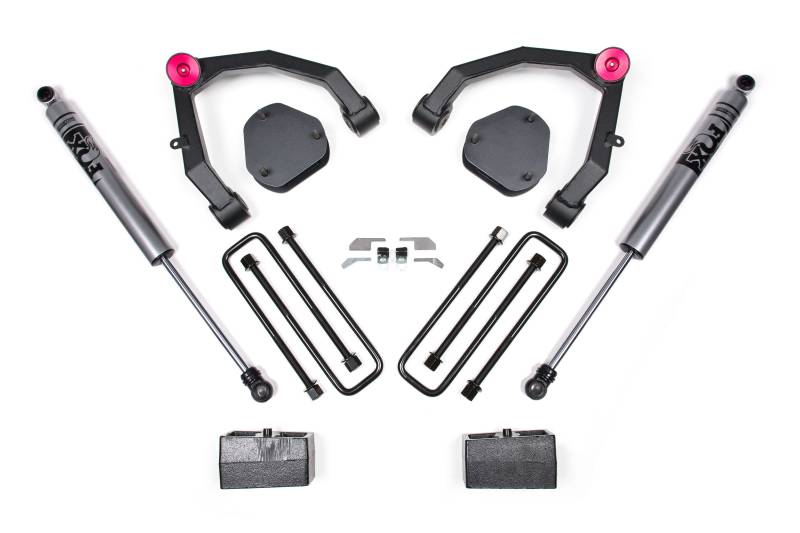

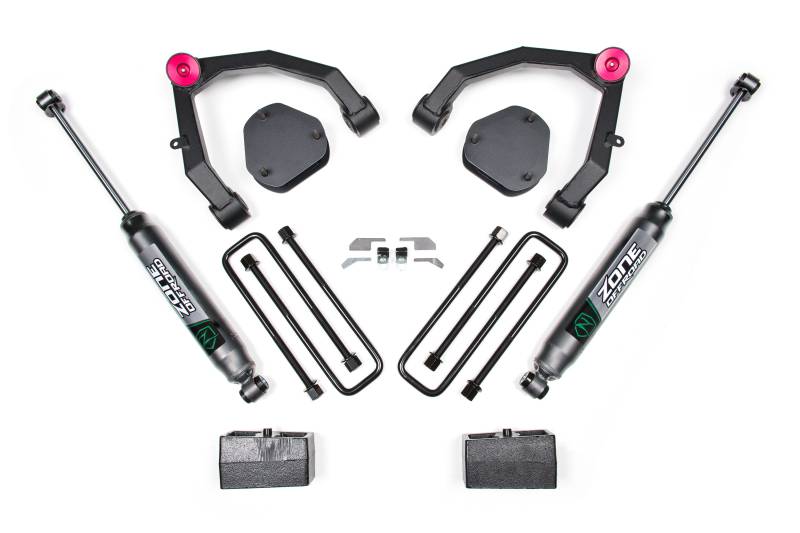

Kit Components:

• FOX98450719 (x2)
• ZONC1309
• ZONC2351
