Zone Offroad ZONF86N 4" Suspension Lift Kit Zone Shocks for F250/F350 SD 4WD

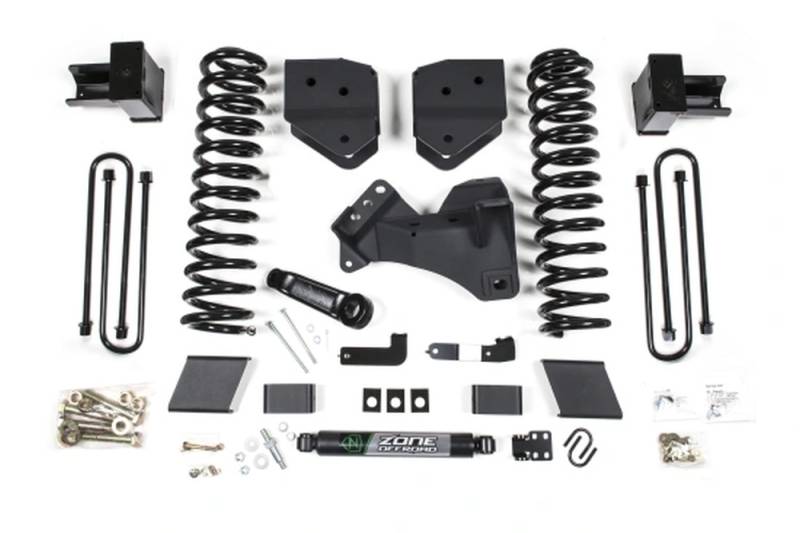

Take your Super Duty to new heights with this 4" lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arm relocation brackets to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for 37" tires.

Features:

• High strength front coil springs improve ride quality
• Radius arm drop brackets to correct caster and maintain suspension geometry
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
• Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles
• Replacement 5" rear lift blocks and u-bolts to lift and level the stance

Notes:

• 37x12.50 tires may require minor trimming.
• Determine if your truck is equipped with standard (2-leaf main) or heavy payload (3-leaf main w/overload) factory rear leaf spring packs. Standard 2-leaf main applications will require Zone Offroad Kit # F48, heavy payload 3-leaf main w/ overload applications will require Zone Offroad kit # F50.
• Factory wheels fit when paired with factory original equipment tire size.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.

Installation:

• Install Time Hours: 5 hrs
• Difficulty Level: 2 out of 5

Wheel and Tire Fitment:

• Wheel Size: 17x9
• Back Spacing: 5.00
• Max Tire Size: 37x12.50
• Wheel Size: 18x9
• Back Spacing: 5.00
• Max Tire Size: 37x12.50
• Wheel Size: 20x9
• Back Spacing: 5.00
• Max Tire Size: 37x12.50
