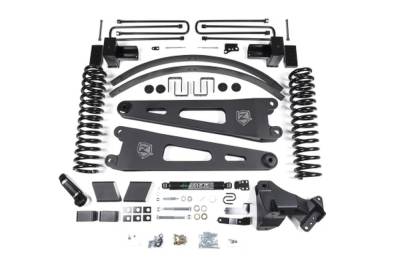

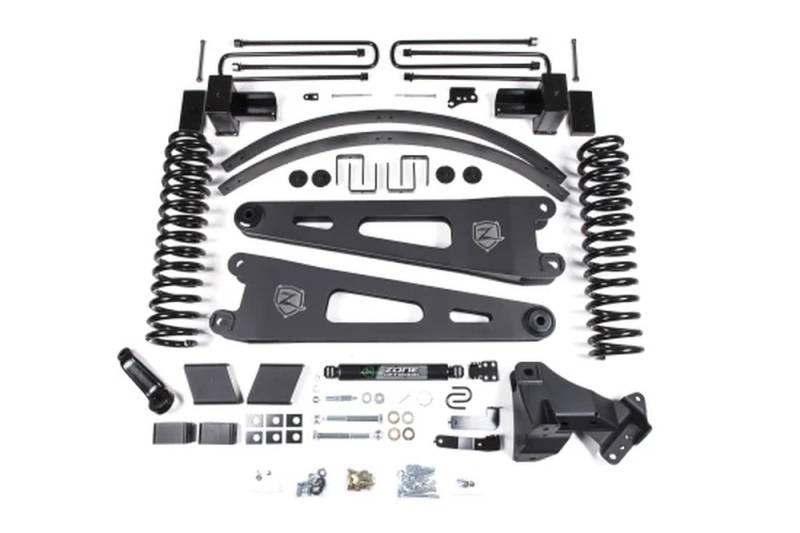

Zone Offroad 6" Suspension Lift Kit Fox Shocks F250/F350 SD 4WD Diesel ZONF89F

Take your Super Duty to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for 38" tires.

Features:

• High strength front coil springs improve ride quality
• HD radius arm to correct caster while maximizing ground clearance
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
• Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles
• Replacement rear lift blocks, add-a-leafs and u-bolts to lift and level the stance

Notes:

• 38x13.50 tires may require minor trimming.
• Diesel Model Only.
• Factory wheels fit when paired with factory original equipment tire size.
• Check your rear springs to determine if your truck is equipped with standard, 2-leaf main, or heavy payload 3-leaf main spring pack with an overload spring.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.

Installation:

• Install Time Hours: 7 hrs
• Difficulty Level: 3 out of 5

Wheel and Tire Fitment:

• Wheel Size: 17x10
• Back Spacing: 5.00
• Max Tire Size: 38x13.50
• Wheel Size: 18x10
• Back Spacing: 5.00
• Max Tire Size: 38x13.50
• Wheel Size: 20x10
• Back Spacing: 5.00
• Max Tire Size: 38x13.50
