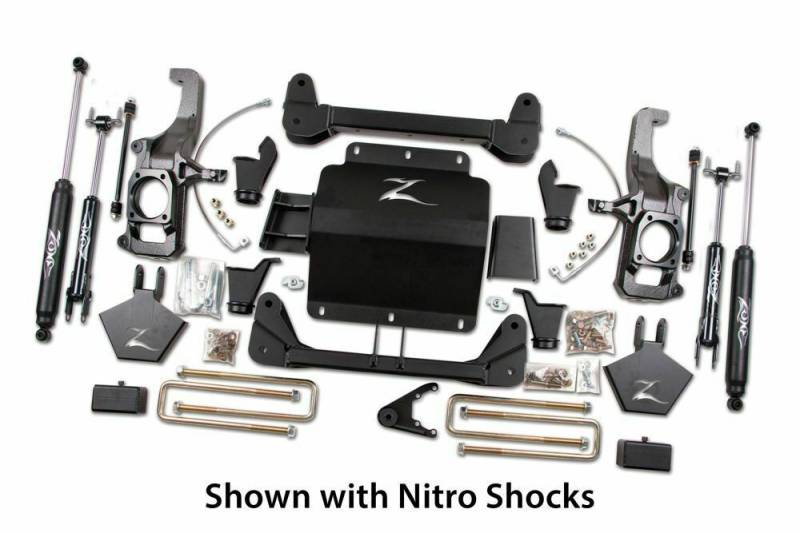

Zone Offroad 5" Suspension Lift Kit Zone Shocks Silverado/Sierra HD ZONC12N

Turn heads and drop jaws with this 5" lift kit for your truck that gives you clearance for tires up to 35". This kit has everything you need to raise and level your 2011-2019 Chevy/GM 2500HD/3500HD truck. If you're going to do it, do it right.

Features:

• Heavy-duty differential skid slate improves offroad protection.
• High-strength, 1/4" steel construction crossmembers corrects lower control arm geometry.
• High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
• No differential trimming required.
• Rear lift block and longer U-bolts for easy installation and level stance.

Notes:

• Factory 20" wheels can not be reinstalled on 2015-2018 models due to GM changing the wheel thickness
• Stock 17" or 18" Wheels cannot be re-installed.
• WILL fit RWD models, however the front differential related parts in kit will not be used.
• Frame bracket modifications required for installation.
• Optional steering stabilizer (Zone Offroad # 7103) only fits vehicles that came equipped with a steering stabilizer from the factory.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
• In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual cardan style driveshaft.

Installation:

• Install Time Hours: 7 hrs
• Difficulty Level: 4 out of 5

Wheel and Tire Fitment:

• Wheel Size: 17x9
• Back Spacing: 4.75
• Max Tire Size: 35x12.50
• Wheel Size: 18x9
• Back Spacing: 4.75
• Max Tire Size: 35x12.50
• Wheel Size: 20x9
• Back Spacing: 6"
• Max Tire Size: 35x12.50
